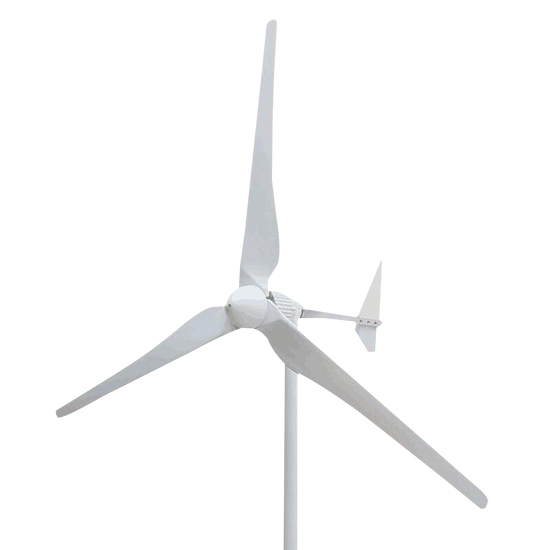

2kW Horizontal Axis Wind Turbine, 48V-240V
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: HZTOHZ-WT-L1-2000
- Weight: 1.00
- SKU: HZTOHZ-WT-L1-2000
A 2kW horizontal axis wind turbine is a small-scale wind energy system designed to generate up to 2 kilowatts (kW) of electrical power. It features a horizontal axis, meaning the rotor shaft and blades rotate parallel to the ground. Wind turbines are commonly used for residential or small commercial applications, providing renewable energy by converting wind kinetic energy into electricity. The blades capture wind energy, turning the rotor, which drives the generator to produce electricity. These wind turbine generators are efficient in areas with consistent wind patterns and can be connected to the grid or used off-grid.
Features:
- Low starting wind speed, beautiful appearance, and low running vibration.
- This 2000W HAWT wind turbine uses a humanized flange installation design, convenient installation and maintenance.
- The blade adopts the new technology of precision injection molding, with optimized aerodynamic shape and structure, which improves the wind energy utilization rate and annual output.
- Patented permanent magnet alternator with special stator, which effectively reduces the torque and matches the wind turbine with the generator to ensure the performance of the whole system.
Details:

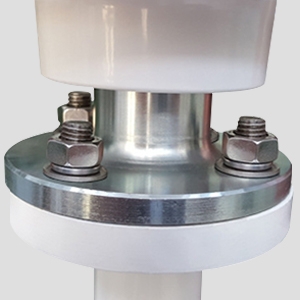

Flange Design
It ensures better load distribution, reducing stress concentrations, and increasing the overall lifespan of the 2kW wind turbine generator. Flanges allow for easier assembly and maintenance, as they enable precise alignment of parts. This design also improves the stability of the turbine, particularly under high wind conditions, by securing the critical joints more effectively.

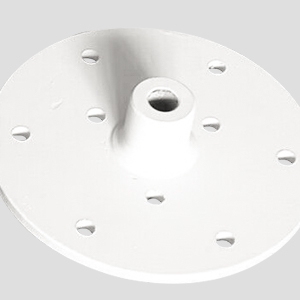

Surface Oxidation Treatment
It enhances corrosion resistance, particularly in harsh environments like offshore wind farms, extending the hub's lifespan. The treatment improves the surface hardness, reducing wear and tear from mechanical stress. It also enhances adhesion for subsequent coatings. Additionally, surface oxidation can reduce friction between moving parts, improving overall HAWT wind turbine efficiency.

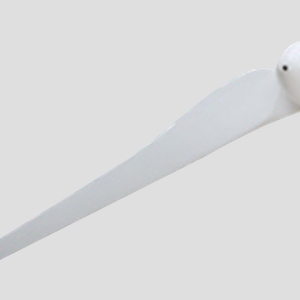

Solid Blade
The most significant is better balance and stability, reducing vibration and mechanical stress, leading to a longer 2000 watt horizontal wind turbine lifespan. They also have a more consistent and smoother rotation, optimizing energy capture and efficiency. Three blades offer a good balance between aerodynamics and material costs, achieving high power output with relatively low noise.

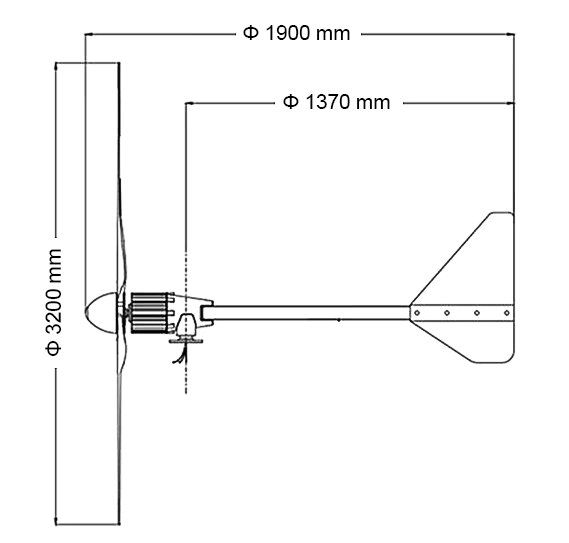

2kW HWAT Turbine Dimension:

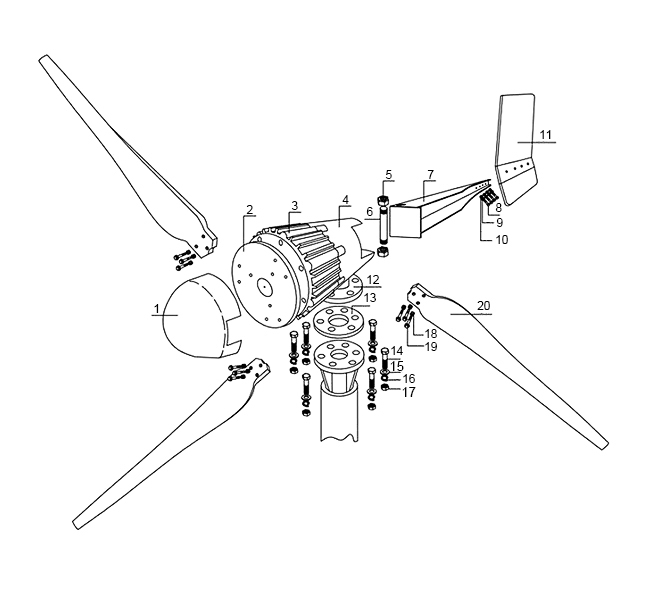

2kW HWAT Turbine Decomposition Diagram:
1. Fairing; 2. Wind turbine hub; 3. Front turbine body; 4. Rear turbine body; 5. Anti-loose nut; 6. Stern rudder fastening tube; 7. Rear control; 8. blot; 9. Flat washer; 10. Nut; 11. Tail plate; 12. Wind turbine flange seat; 13. Rubber gasket; 14. bolt; 15. Flat washer; 16. Resilient pad; 17. Nut; 18. Anti-loose nut; 19. Stainless screw; 20. Wind turbine blade
Applications:

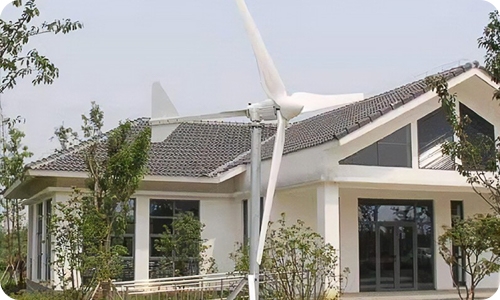

Home

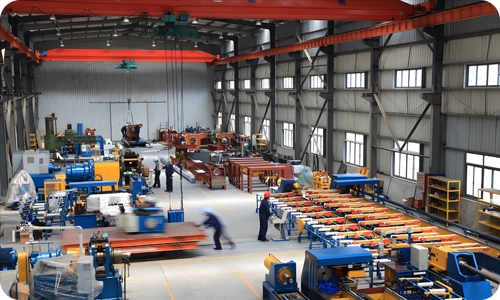

Industry Field

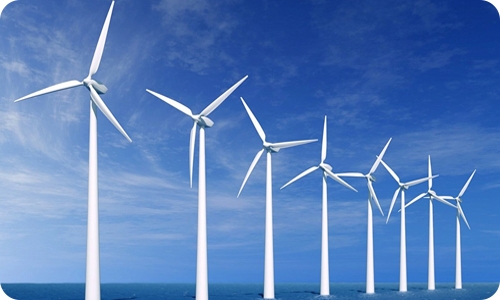

Offshore Wind Farm

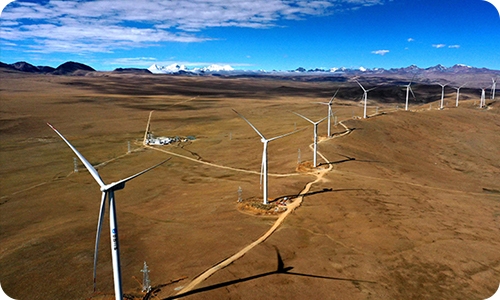

Remote Area
| Model | HZTOHZ-WT-L1-2000 |
| Rated power | 2000W |
| Maximum power | 2300W |
| Rated voltage | 48V/96V/120V/220V/240V |
| Start-up wind speed | 2m/s |
| Rated wind speed | 11m/s |
| Safe wind speed | ≤50m/s |
| Fan blade diameter | 3.2m |
| Number of blades | 3 |
| Blade material | reinforced FRP |
| Fuselage material | reinforced die-cast aluminum |
| Magnetic steel material | NdFeB |
| Generator type | 3-phase AC permanent magnet synchronous generator |
| Control mode | electromagnetic brakes |
| Wind direction adjustment | automatically adjusts the windward angle |
| Protection level | IP54 |
| Net weight | 58kg |
