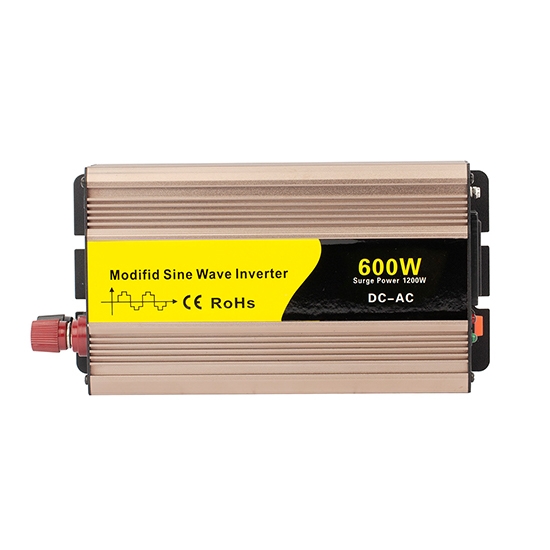

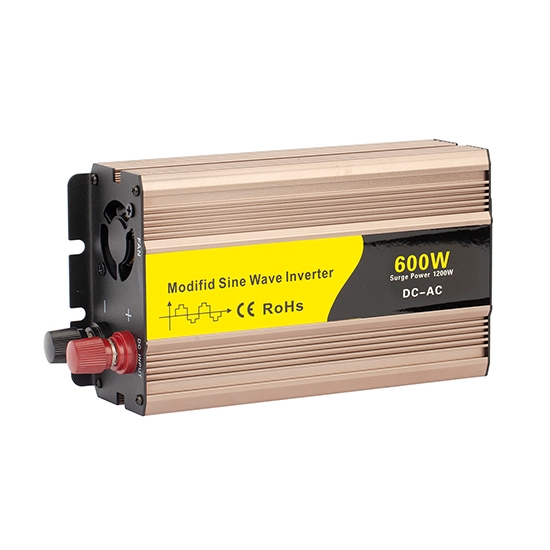

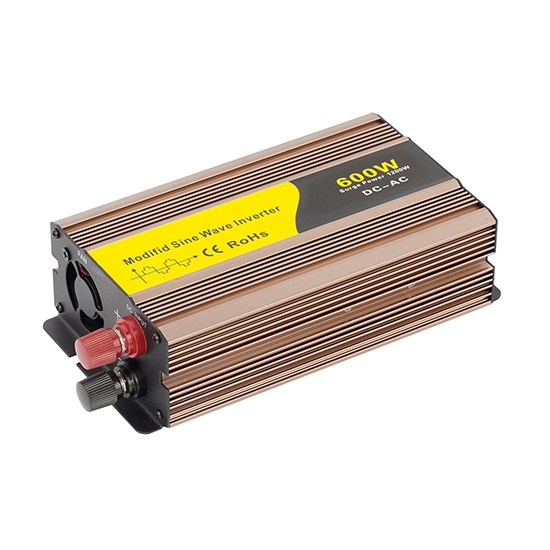

24v 600w Inverter, 24v To 120v/240v Power Inverter
from
$75.82
Ex Tax: $75.82
- Stock: In Stock
- Model: HZTOHZ-MSWI-24V-600W
- Weight: 1.00
- SKU: HZTOHZ-MSWI-24V-600W
Power inverter with 600W continuous and 1200W peak power converts 24V DC to 110V/120V or 220V/230V AC household power, which provides protections against reverse connection, and low voltage. Equipped with an intelligent cooling fan, the 600-watt power inverter can work at (-10°C, 50°C). It is widely used in laundry, refrigerators, and microwaves.
Note: Refrigerator or similar to the refrigerator load equipment, need to choose 10 times more power inverter.
Features
- The higher the conversion rate of an inverter for home, the longer the working time.
- Reduce conversion loss, conversion efficiency is over 90%.
- Aluminum alloy shell, the surface is sandblasted and oxidized for better heat dissipation.
- One-button control of switching the power supply makes electricity use safer.
- Compatible with 99% of electrical appliances on the market, as safe as mains electricity.
- Equipped with a USB interface, multiple socket specifications are available, such as Germany, the United States, South Africa, the United Kingdom, etc.
Details

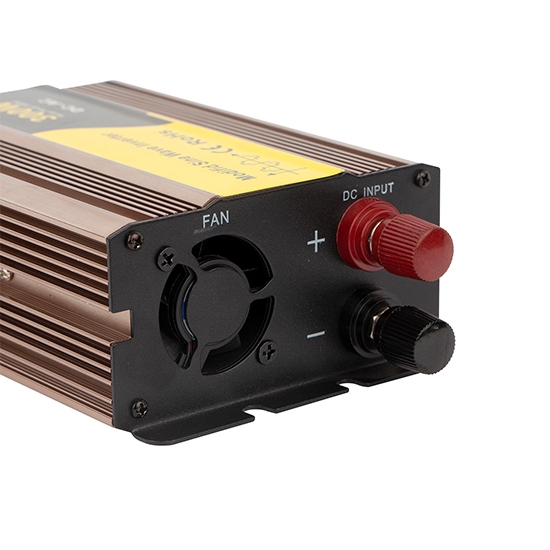

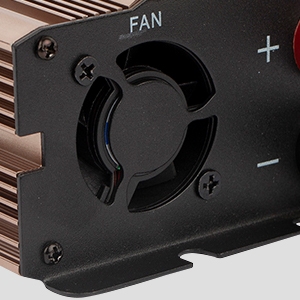

Intelligent Cooling Fan
After reaching 45 degrees Celsius, a 300-watt power inverter will automatically start the cooling fan to dissipate the heat, effectively reducing energy consumption. The fan adopts a ball structure, long life, high speed, and low noise.

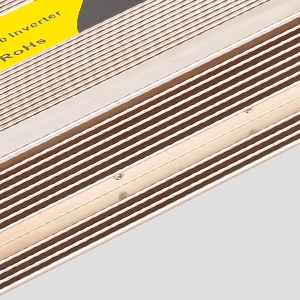

Aluminum Alloy Shell
With an aluminum alloy shell, the surface of the power inverter is oxidized by sandblasting, which has a better heat dissipation effect. At the same time, it has a beautiful appearance and does not change color permanently.

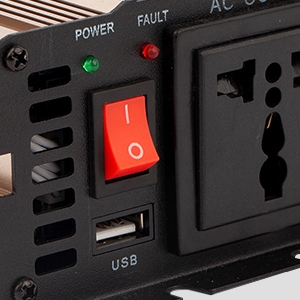

Multiple-functional Socket
Different socket specifications can be chosen from. 24v power inverters are usually equipped with multiple interfaces, including but not limited to standard three-hole sockets, two-hole sockets, USB interfaces, etc., to meet the charging and power supply needs of different electrical devices.
Applications
| Model | HZTOHZ-MSWI-24V-600W |
| Input Voltage | DC 24V |
| Output Voltage | 1-Phase (L, N, G) 110V/120V AC ±5% or 220V/230V/240V AC ±5% - NOT provide split phase configuration (L1, L2+N, G) |
| Unload Current (less than) | 0.1A |
| Continuous Power | 600W |
| Peak Power | 1200W |
| Output Frequency | 50Hz±0.5Hz or 60Hz±0.5Hz |
| Output Waveform* | Modified sine wave or Pure sine wave |
| Max. Efficiency | 90% |
| USB Port | 5V 1A |
| Outlet Type | Universal outlet *1 |
| Input Voltage Range | 20V-31V |
| Low Voltage Alarm | 21V±0.5V |
| Low Voltage Protection | 20V±0.5V |
| High Voltage Protection | 31V±0.5V |
| Low Voltage Recover | 24V±0.5V |
| Over Voltage Recover | 29.5V±0.5V |
| Overload Protection | Yes |
| Overheat Protection | Yes |
| Short Circuit Protection | Yes |
| Reverse Connection Protection | Yes |
| Cooling Method | Intelligent cooling fan |
| Working Temperature | -10℃ ~ +50℃ |
| Storage Temperature | -30℃ ~ +70℃ |

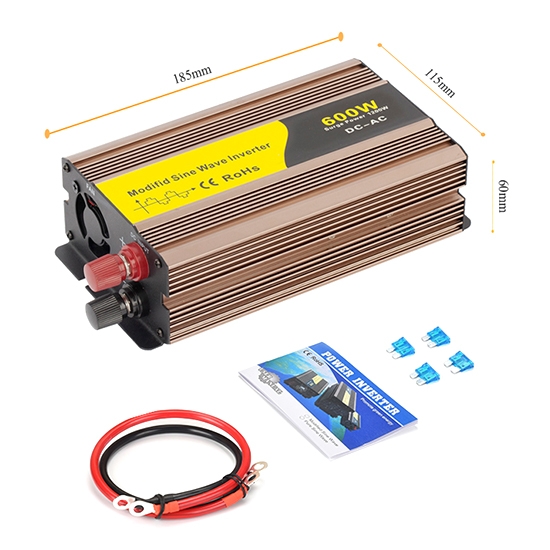

| Product Size | 185x115x60mm |
| Net. Weight | 940g |
| Warranty | 1 year |
Note: * The AC output is 1-Phase (L, N, G), NOT Split Phase like USA standard (L1, L2+N, G).
Output Sockets (Optional)
Protection Function
- Low voltage. The alarm at first; voltage continuously reduce, LED Red light on & shut down.
- Over voltage. LED Red light on, shut down.
- Over load. LED Red light on, shut down.
- Over temperature. Alarm at first; temperature continuously rises, LED Red light on & shut down.
- Short circuit. LED Red light on.
- Input reverse polarity. Fuse burn-out.
