24v 1000w Inverter, 24v To 110v/220v Power Inverter
from
$114.08
Ex Tax: $114.08
- Stock: In Stock
- Model: HZTOHZ-MSWI-24V-1000W
- Weight: 1.00
- SKU: HZTOHZ-MSWI-24V-1000W

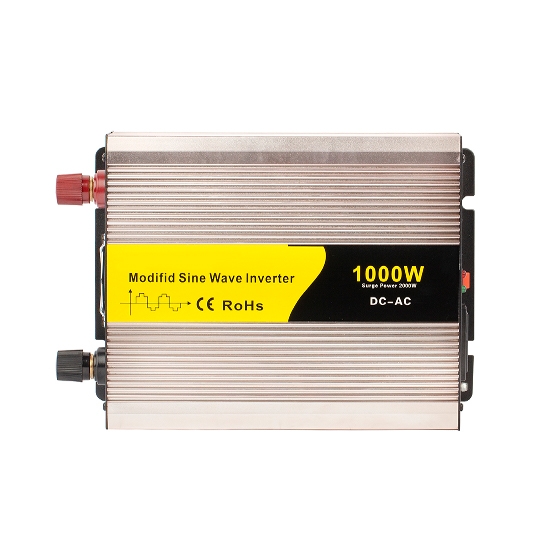

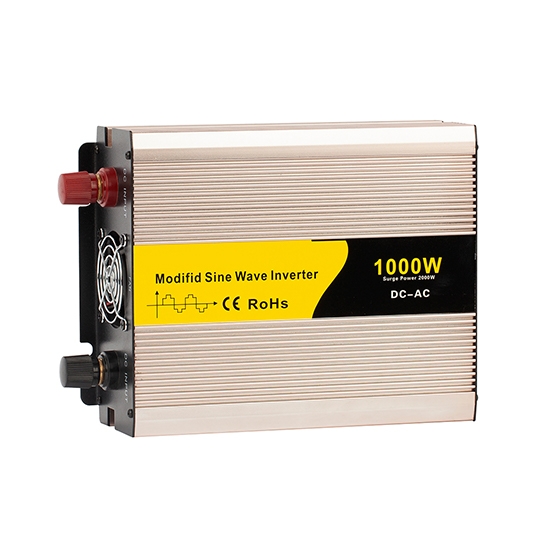

1000w power inverter, a modified sine wave, can work at (-10°C, 50°C). Equipped with an intelligent cooling fan, the portable power inverter has overload protection, overheat protection, reverse connection protection, etc. Max efficiency 90% and input voltage range 20V~31V. Intelligent digital display, real-time feedback of electronic data changes.
Note: Refrigerator or similar to the refrigerator load equipment, need to choose 10 times more power inverter.
Features
- The 1000 watt inverter is installed with an aluminum alloy hard shell, which has good heat dissipation performance.
- Equipped with an LCD, 24v inverter for home is convenient for real-time display of values.
- Intelligent switching of charging mode, reducing battery damage.
- The conversion efficiency of the power inverter for home is up to 90%, reducing the energy loss of the power inverter.
Details

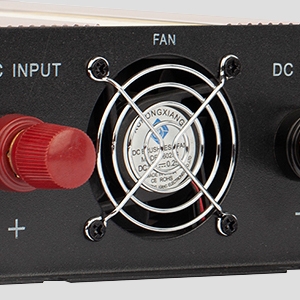

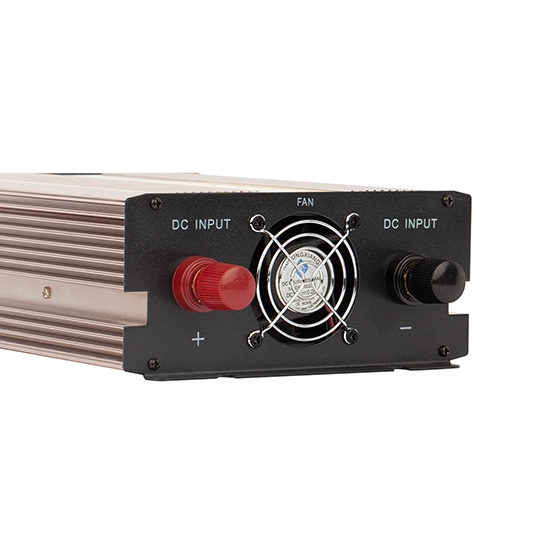

Intelligent Cooling Fan
After reaching 45 degrees Celsius, a 300-watt power inverter will automatically start the cooling fan to dissipate the heat, effectively reducing energy consumption. The fan adopts a ball structure, long life, high speed, and low noise.

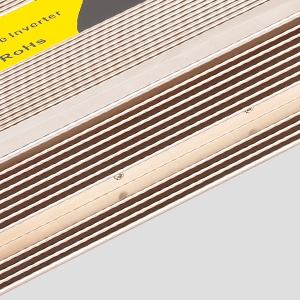

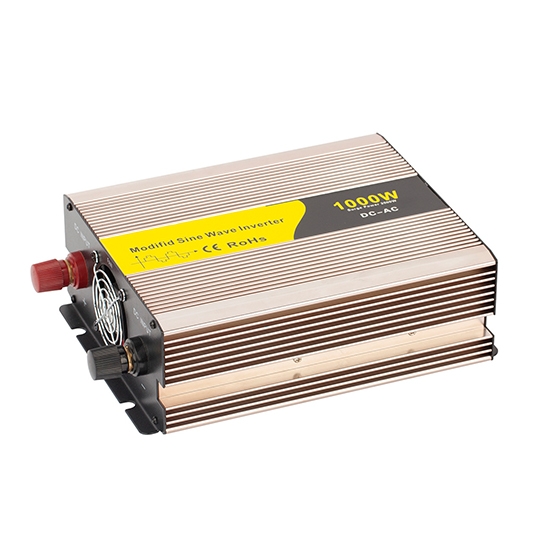

Aluminum Alloy Shell
With an aluminum alloy shell, the surface of the power inverter is oxidized by sandblasting, which has a better heat dissipation effect. At the same time, it has a beautiful appearance and does not change color permanently.

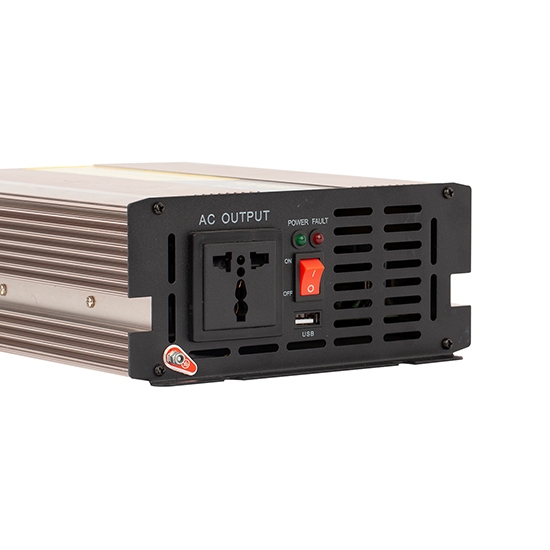

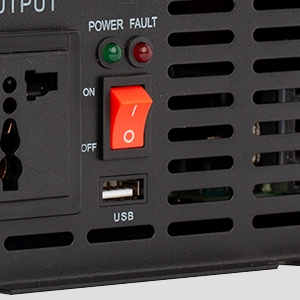

Multiple-functional Socket
Different socket specifications can be chosen from. 24v power inverters are usually equipped with multiple interfaces, including but not limited to standard three-hole sockets, two-hole sockets, USB interfaces, etc., to meet the charging and power supply needs of different electrical devices.
Applications
Refrigerator
Air Conditioning
Laundry
Microwave Oven
| Model | HZTOHZ-MSWI-24V-1000W |
| Input Voltage | DC 24V |
| Output Voltage | 1-Phase (L, N, G) 110V/120V AC ±5% or 220V/230V/240V AC ±5% - NOT provide split phase configuration (L1, L2+N, G) |
| Unload Current (less than) | 0.3A |
| Continuous Power | 1000W |
| Peak Power | 2000W |
| Output Frequency | 50Hz±0.5Hz or 60Hz±0.5Hz |
| Output Waveform | Modified sine wave or Pure sine wave |
| Max. Efficiency | 90% |
| USB Port | QC 3.0 |
| Outlet Type | Universal outlet *1 |
| Input Voltage Range | 20V-31V |
| Low Voltage Alarm | 21V±0.5V |
| Low Voltage Protection | 20V±0.5V |
| High Voltage Protection | 31V±0.5V |
| Low Voltage Recover | 24V±0.5V |
| Over Voltage Recover | 29.5V±0.5V |
| Overload Protection | Yes |
| Overheat Protection | Yes |
| Short Circuit Protection | Yes |
| Reverse Connection Protection | Yes |
| Cooling Method | Intelligent cooling fan |
| Working Temperature | -10℃ ~ +50℃ |
| Storage Temperature | -30℃ ~ +70℃ |

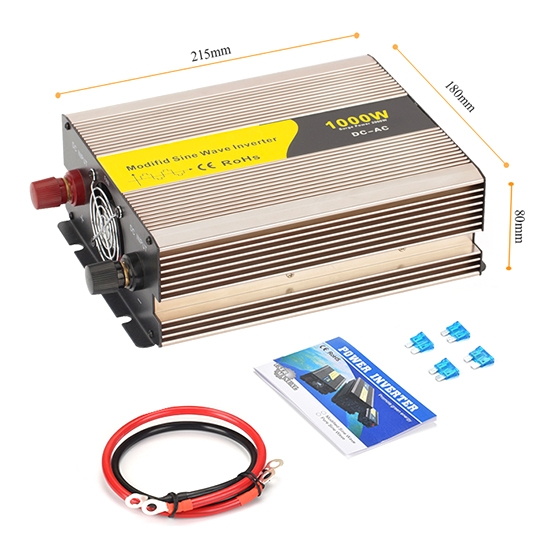

| Product Size | 215x180x80mm |
| Net. Weight | 2280g |
| Warranty | 1 year |
| Remote Control | Wired control (3m) or Wireless control (20m) -Wired control ONLY applies to pure sine wave inverter |
Note: * The AC output is 1-Phase (L, N, G), NOT Split Phase like USA standard (L1, L2+N, G).
Output Sockets (Optional)

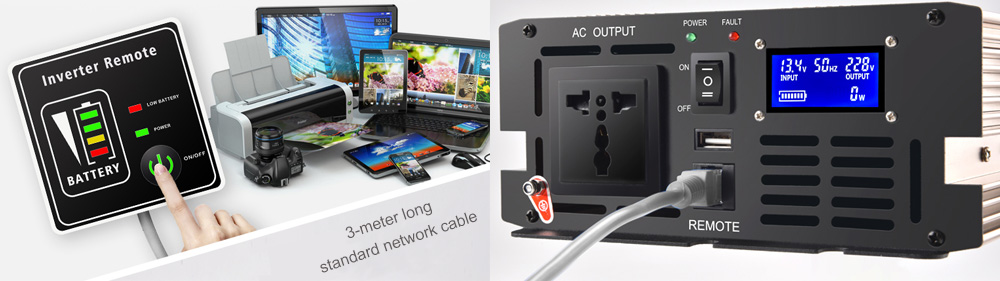

Pure Sine Wave Inverter Remote Control & LCD Display (Optional)
- Pure sine wave power inverter is available with remote control: wired control and wireless control.
- LCD display shows input voltage, output voltage, output frequncy, battery capacity and power.
Protection Function
- Low voltage. The alarm at first; voltage continuously reduced, and the LED Red light on & shut down.
- Over voltage. LED Red light on, shut down,
- Over load. LED Red light on, shut down.
- Over temperature. Alarm at first; temperature continuously rises, LED Red light on & shut down.
- Short circuit. LED Red light on.
- Input reverse polarity. Fuse burn-out.
