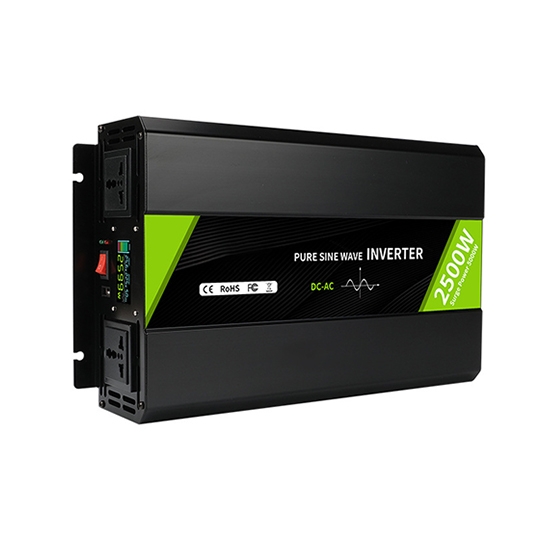

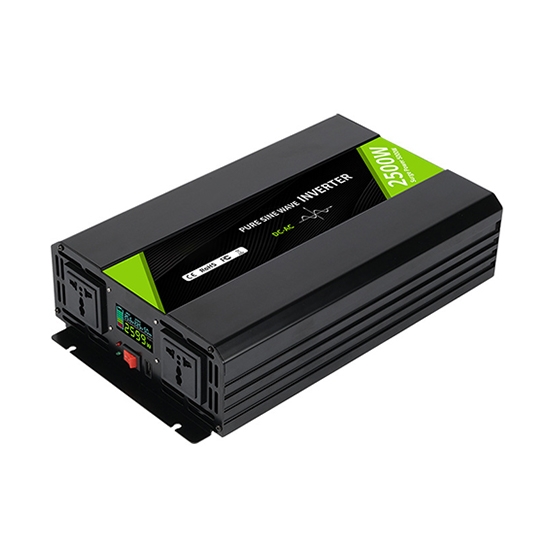

24V 2500 Watt Pure Sine Wave Inverter
from
$363.77
Ex Tax: $363.77
- Stock: In Stock
- Model: HZTOHZ-PSWI-24V-2500W
- Weight: 1.00
- SKU: HZTOHZ-PSWI-24V-2500W
A 24V 2500 watt pure sine wave inverter is an electrical device that converts direct current (DC) from a 24 volt battery system into alternating current (AC) with a continuous power output of 2500 watts. The "pure sine wave" aspect refers to the quality of the AC output, which closely mimics the smooth, sinusoidal waveform of electricity supplied by the grid. This type of power inverter is preferred for powering sensitive electronics and appliances, such as laptops, medical equipment, and motors, because it provides a consistent and clean power source, reducing the risk of damage or interference.
Features:
- Pure sine wave. 100% pure sine wave output, low distortion, waveform and main power line AC waveform are basically the same, equipment accuracy is small, low interference, low noise, strong load capacity, can meet any type of AC load, without damaging the load.
- Aluminum alloy shell. Aluminum is lightweight, reducing the overall weight of the pure sine wave solar power inverter, making it easier to handle and install. The sturdy construction of an aluminum alloy shell also provides robust protection against physical damage and electromagnetic interference.
- Lower consumption and higher efficiency. The output current is the same as the household, and the power conversion efficiency is high, up to 90%, low standby power consumption.
- Various protection. 2500 watt pure sine wave inverter with various protections, such as low voltage protection, over voltage protection, overload protection, over temperature protection and short circuit protection.
Details:

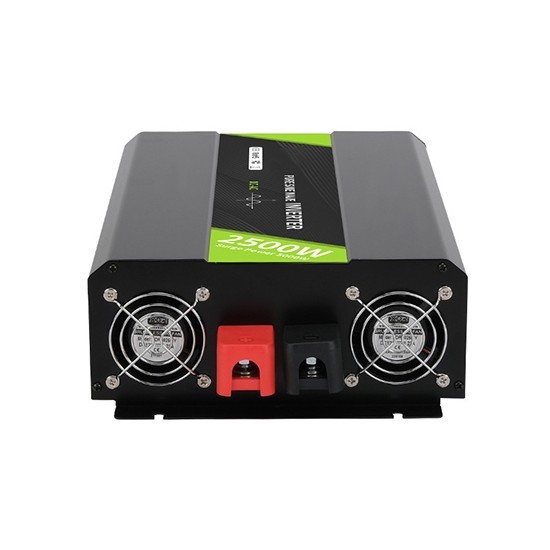

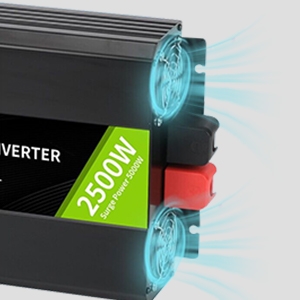

Cooling Fan
Cooling fan in a 24V 2500 watt pure sine wave solar power inverter provides essential thermal management by dissipating heat generated during operation, ensuring the inverter remains within safe temperature limits. Effective cooling allows the inverter to operate at higher loads without risk, making it suitable for continuous use in various applications.

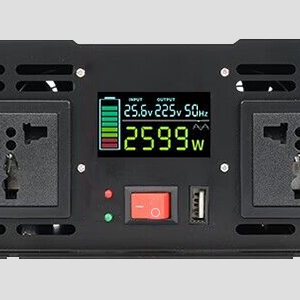

Smart LCD DIsplay
A smart LCD display on a pure sine wave 2500W inverter provides real-time monitoring and control, enhancing user convenience and operational efficiency. It displays battery voltage and capacity, AC loading power, AC output voltage and output frequency. smart LCD display improves user experience by offering intuitive access to vital data, ensuring reliable and efficient operation of the inverter.

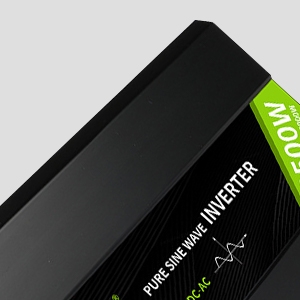

Aluminum Alloy Shell
It provides excellent heat dissipation, enhancing cooling and performance of 24 volt pure sine wave inverter. The lightweight nature of aluminum reduces the overall weight of the device, making it easier to handle and install. Aluminum is also resistant to corrosion, ensuring durability and longevity, especially in harsh environments. Its strong structural properties protect internal components from physical damage.
Applications:
Caravan
Power Failure
Outdoor Camping

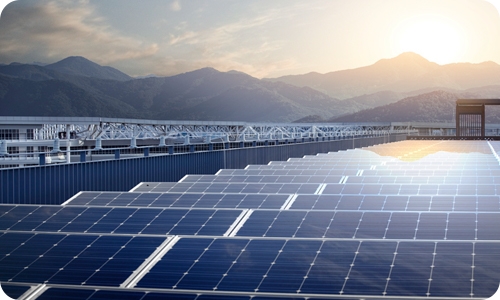

Solar Industry
| Model | HZTOHZ-PSWI-24V-2500W |
| Output power | 2500W |
| Peak power | 5000W |
| Input voltage | DC24V (18-31V) |
| Output voltage | (100VAC/110VAC/120VAC/220VAC/230VAC/240VAC)±5% |
| Unload current less than | ≤0.4A |
| Output frequency | 50Hz or 60Hz |
| Output waveform | pure sine wave |
| Waveform distortion | THD≤3% (pure resistive load) |
| USB | 18W fast charging |
| Max output efficiency | 90% |
| Low voltage protection | pre-alarm (alarm off after 1 sound), LED red light on, voltage contiously reduce and shutdown |
| Over voltage protection | pre-alarm (alarm off after 2 sounds), LED red light on, shutdown |
| Overload protection | continuous alarm, LED red light on. shutdown |
| Over temperature protection | pre-alarm (alarm off after 3 sounds), temperature contiously rise, LED red light on, shutdown |
| Short circuit protection | perfect protection and no damage the circuit |
| Input reverse polarity protection | fuse burn-out |
| Low voltage alarm | 21±0.5V |
| Low voltage protection | 19±0.5V |
| Over voltage protection | 31±0.5V |
| Low voltage recover | 24±0.5V |
| Over voltage recover | 29±0.5V |
| Working temperature | -20 ℃~50 ℃ |
| Cooling method | intelligent air cooling |
| Product dimension | 370mm*205mm*85mm |
| Net weight | 4.4kg |

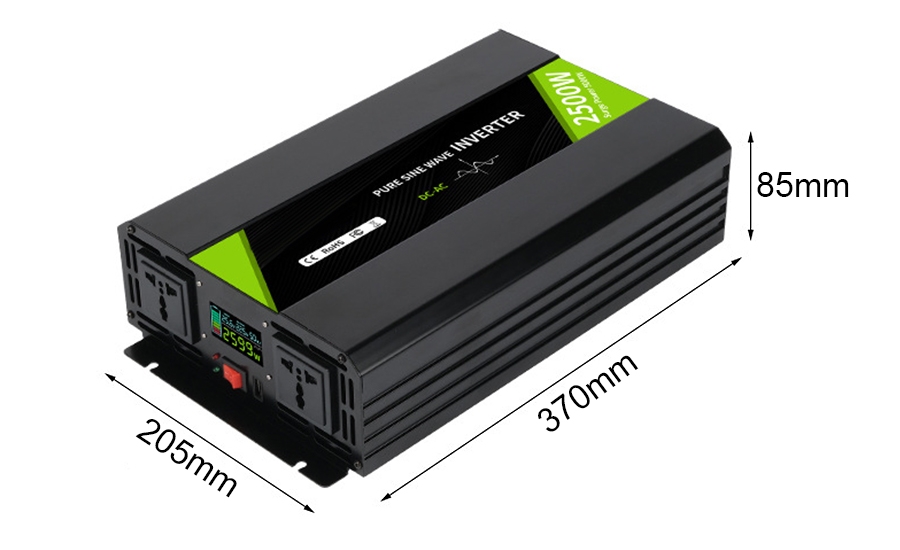

2500W Pure Sine Inverter Dimension (Unit: mm):

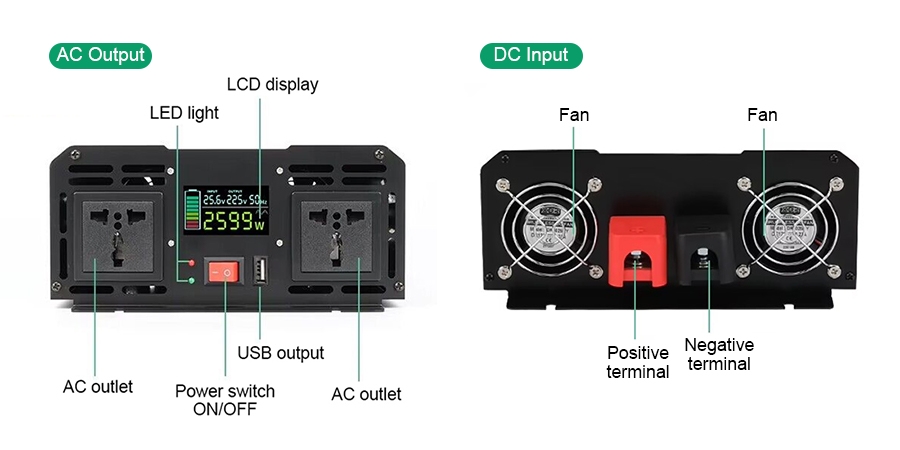

Structure:

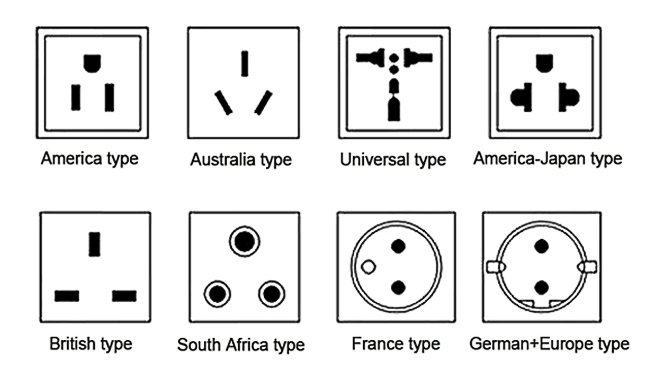

Pure Sine Wave Inverter Output Sockets (Optional):
