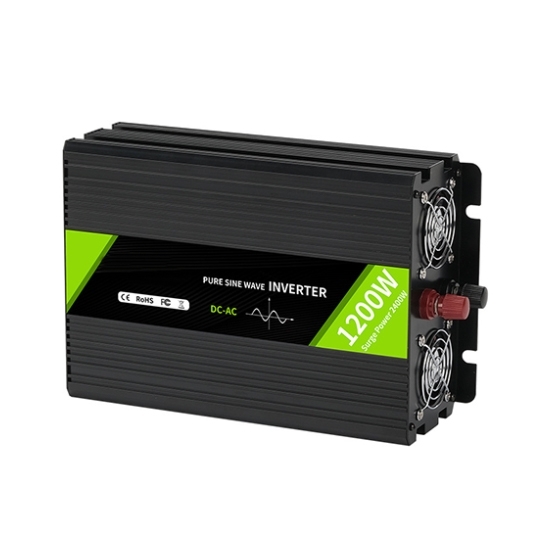

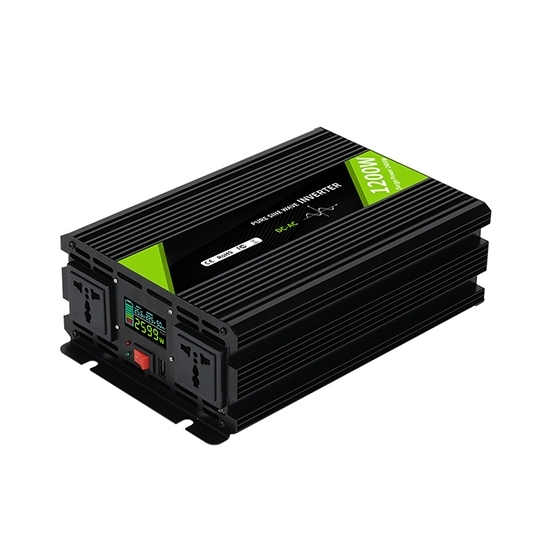

24V 1200 Watt Pure Sine Wave Inverter
from
$217.53
Ex Tax: $217.53
- Stock: In Stock
- Model: HZTOHZ-PSWI-24V-1200W
- Weight: 1.00
- SKU: HZTOHZ-PSWI-24V-1200W
A 24V 1200W pure sine wave inverter is an electrical device that converts direct current (DC) from a 24 volt into alternating current (AC). The 24V input means the inverter is designed for battery banks wired in 24V configurations, typically using two 12V batteries in series. Pure sine wave power inverters are particularly useful for applications requiring high efficiency and low harmonic distortion, which is essential for running equipment that depends on consistent power.
Features:
- Pure sine wave. 100% pure sine wave output, low distortion, waveform and main power line AC waveform are basically the same, equipment accuracy is small, low interference, low noise, strong load capacity, can meet any type of AC load, without damaging the load.
- Aluminum alloy shell. Aluminum is lightweight, reducing the overall weight of the pure sine wave solar power inverter, making it easier to handle and install. The sturdy construction of an aluminum alloy shell also provides robust protection against physical damage and electromagnetic interference.
- Lower consumption and higher efficiency. The output current is the same as the household, and the power conversion efficiency is high, up to 90%, low standby power consumption.
- Various protection. 1200 watt pure sine wave inverter with various protections, such as low voltage protection, over voltage protection, overload protection, over temperature protection and short circuit protection.
Details:

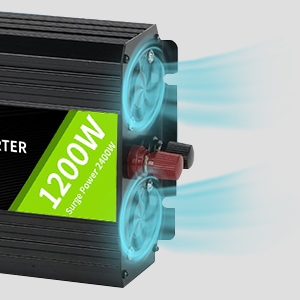

Cooling Fan
Cooling fan in a 1200 watt pure sine wave inverter enhances performance and longevity by preventing overheating, which can lead to component failure or reduced efficiency. It helps maintain optimal operating temperatures, especially during heavy loads or prolonged usage. Efficient cooling improves the inverter's reliability and allows it to sustain high power outputs without risk of thermal damage.

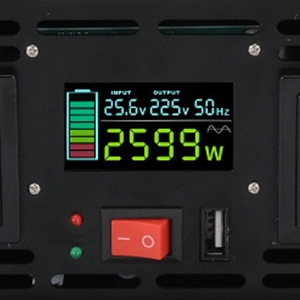

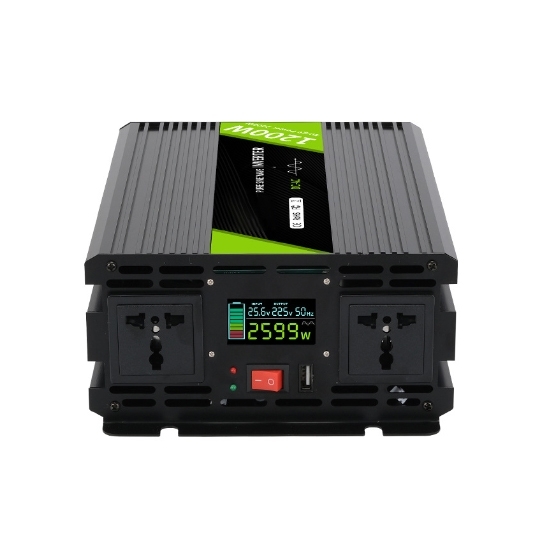

LCD DIsplay
It provides real-time information on key parameters such as input/output voltage, battery level and output frequency, enabling easy monitoring and maintenance. This helps prevent system overload, and enhances overall efficiency. The display allows users to identify issues quickly, making troubleshooting easier. it enhances system management, reduces downtime, and contributes to safer and more efficient operation of the full sine wave inverter.

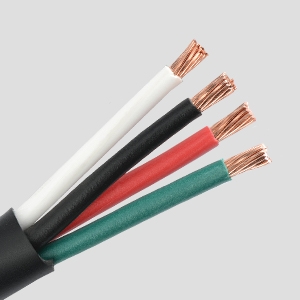

Pure Copper Core Wire
Copper has high electrical conductivity, which minimizes power loss and improves efficiency. It also has better thermal conductivity, allowing for more effective heat dissipation, which enhances the inverter's reliability and lifespan. Additionally, copper coils are more durable and less prone to corrosion compared to other materials, making them ideal for long-term use in this 24V pure sine wave power inverter.
Applications:
Caravan
Power Failure
Outdoor Camping
Household Appliance
| Model | HZTOHZ-PSWI-24V-1200W |
| Output power | 1200W |
| Peak power | 2400W |
| Input voltage | DC24V (18-31V) |
| Output voltage | (100VAC/110VAC/120VAC/220VAC/230VAC/240VAC)±5% |
| Unload current less than | ≤0.3A |
| Output frequency | 50Hz or 60Hz |
| Output waveform | pure sine wave |
| Waveform distortion | THD≤3% (pure resistive load) |
| USB | 18W fast charging |
| Max output efficiency | 90% |
| Low voltage protection | pre-alarm (alarm off after 1 sound), LED red light on, voltage contiously reduce and shutdown |
| Over voltage protection | pre-alarm (alarm off after 2 sounds), LED red light on, shutdown |
| Overload protection | continuous alarm, LED red light on. shutdown |
| Over temperature protection | pre-alarm (alarm off after 3 sounds), temperature contiously rise, LED red light on, shutdown |
| Short circuit protection | perfect protection and no damage the circuit |
| Input reverse polarity protection | fuse burn-out |
| Low voltage alarm | 21±0.5V |
| Low voltage protection | 19±0.5V |
| Over voltage protection | 31±0.5V |
| Low voltage recover | 24±0.5V |
| Over voltage recover | 29±0.5V |
| Working temperature | -20 ℃~50 ℃ |
| Cooling method | intelligent air cooling |
| Product dimension | 296mm*180mm*90mm |
| Net weight | 3kg |

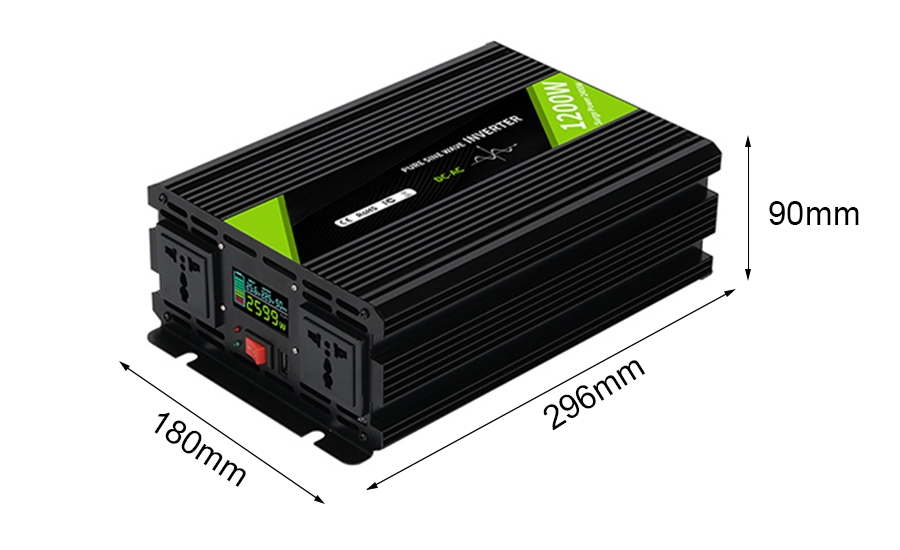

1200W Pure Sine Inverter Dimension (Unit: mm):

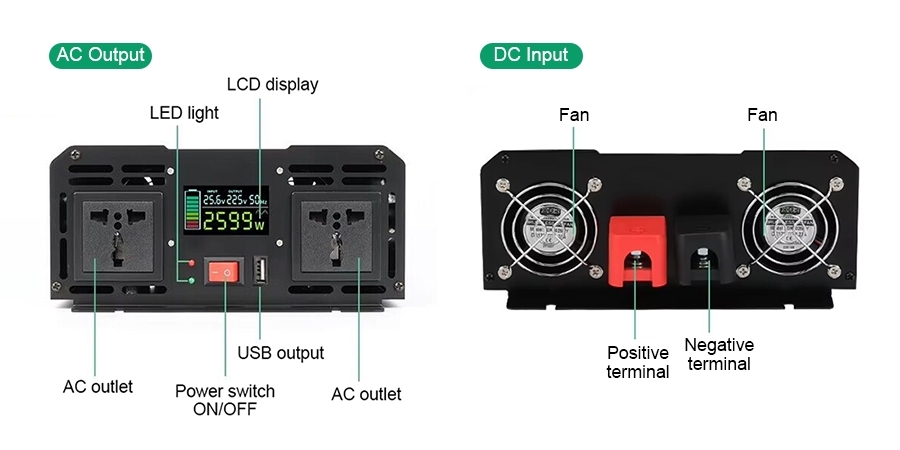

Structure:

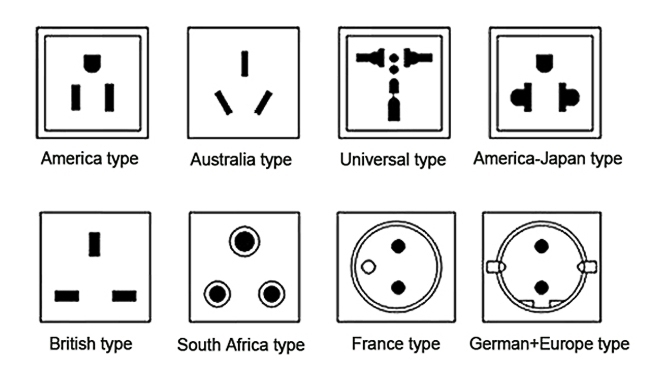

Pure Sine Wave Inverter Output Sockets (Optional):
