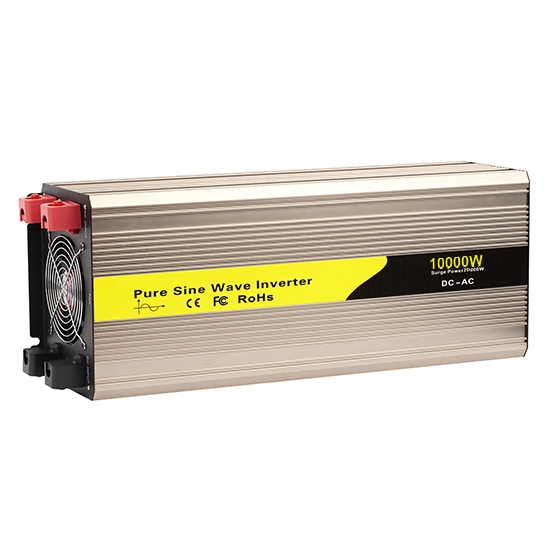

24V 10000 Watt Pure Sine Wave Inverter
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product
- Stock: In Stock
- Model: HZTOHZ-PSWI-24V-10000W
- Weight: 1.00
- SKU: HZTOHZ-PSWI-24V-10000W
The "pure sine wave" aspect indicates that the inverter produces a clean and smooth AC waveform, closely mimicking the power from the utility grid. The rated power of this pure sine inverter is 10000W and the peak power is 20000W. 10kW pure sine wave inverter suitable for running high-demand appliances like air conditioners, refrigerators, pumps, and large tools. Particularly for large-scale or off-grid systems where stable and high-capacity power is essential.
Note: If the load is a refrigerator or similar to a refrigerator with a compressor, it is recommended that the power of the inverter is more than 10 times the power of the load.
Features:
- Pure sine wave. 100% pure sine wave output, low distortion, waveform and main power line AC waveform are basically the same, equipment accuracy is small, low interference, low noise, strong load capacity, can meet any type of AC load, without damaging the load.
- Working instructions intuitive working state. When the sine wave inverter undervoltage/overvoltage, overload, overtemperature, short circuit, the LED indicator lights.
- Fault warning/buzzer alarm reminder. When the inverter high voltage, low voltage, over temperature, overload protection function is turned on, once the protection of the inverter is triggered, the inverter disconnects the power supply and the load enters the protection mode for the first time, and issues an alarm through the buzzer alarm device. Make your use more secure.
Details:

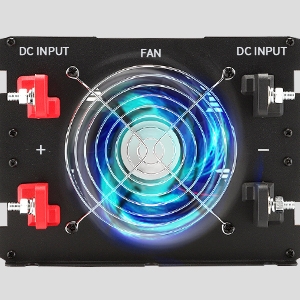

Large Intellengent Cooling Fan
Optimize energy consumption by adjusting fan speed based on temperature, enhancing efficiency. Intelligent cooling fan in 10000 watt pure sine wave inverter ensures quieter operation compared to traditional fan, enhancing user comfort. It contributes to environmental sustainability by reducing energy waste and emissions.

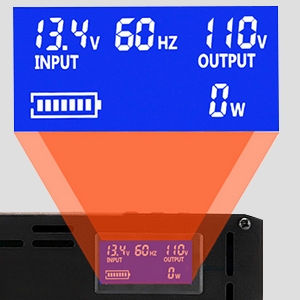

LCD Display
LCD screens consume less power compared to traditional displays, conserving energy and extending battery life. LCD provides clear, sharp visuals with wide viewing angles, ensuring readability even in varying lighting conditions. Users can easily read the information displayed on the screen without any difficulty.

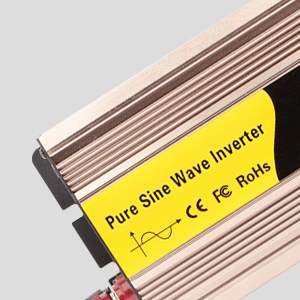

Aluminium Alloy housing
Aluminium's excellent thermal conductivity facilitates efficient heat dissipation, enhancing the inverter's performance and lifespan. its corrosion resistance ensures longevity even in harsh environments. Thermal efficiency, and environmental friendliness, making it an optimal choice for ture sine wave power inverter.
Applications:
Refrigerator
Washing Machine
Coffee Machine
Printer
| Model | HZTOHZ-PSWI-24V-10000W |
| Rated Power | 10000 Watt |
| Peak Power | 20000 Watt |
| Input Voltage | DC 24V |
| Output Voltage | 220 /230 /240VAC±5% |
| Unload Current Less Than | 1.2A |
| Output Frequency | 50Hz or 60Hz±0.5Hz |
| Output Waveform | Pure Sine Wave |
| Waveform Distortion | THD＜3% (Linear load) |
| USB Port | QC 3.0 |
| Max Working Efficiency | 92% |
| Low Voltage Protection Function | Alarm at first, voltage continously reduce. LED Red light on & shut sown |
| Over Voltage Protection Function | LED Red light on, shut down |
| Over Load Protection Function | LED Red light on, shut down |
| Over Temperature Protection Function | Alarm at first, tempurature continously rise. LED Red light on & shut sown |
| Short Circuit Protection Function | LED Red light on |
| Input Reverse Polarity Protection Function | Fuse burn-out |
| Input Voltage Range | 20-31V |
| Low Voltage Alarm | 21±0.5V |
| Low Voltage Protection | 20±0.5V |
| Over Voltage Protection | 31±0.5V |
| Low Voltage Recover | 24±0.5V |
| Over Voltage Recover | 29.5±0.5V |
| Working Temperature | -10℃~ +50℃ |
| Cooling Method | Intelligent air cooling |
| Warranty | 2 years |
| Storage Temperature | -30℃~ +70℃ |
| Configuration | standard |
| Dimensions (W*H*D) | 475mm*205mm*152mm |
| Net/Gross Weight | 11100g / 13900g |

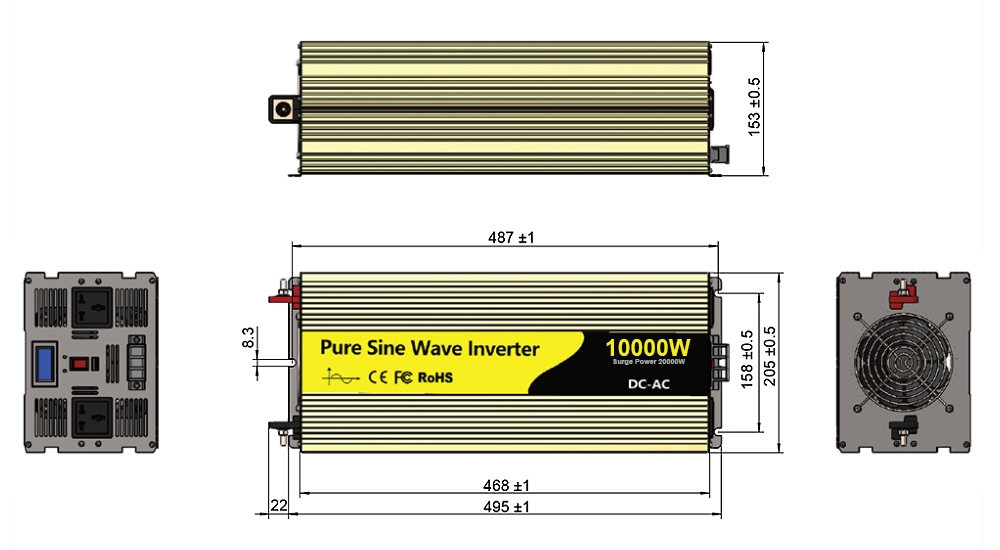

Dimension (Unit: mm)

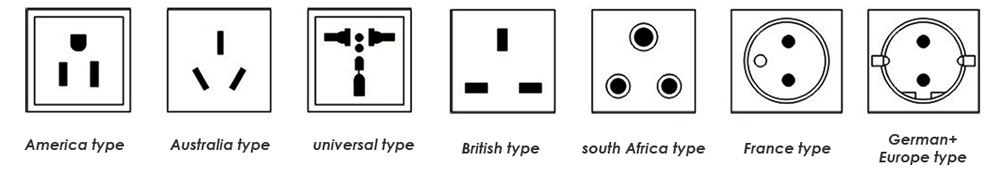

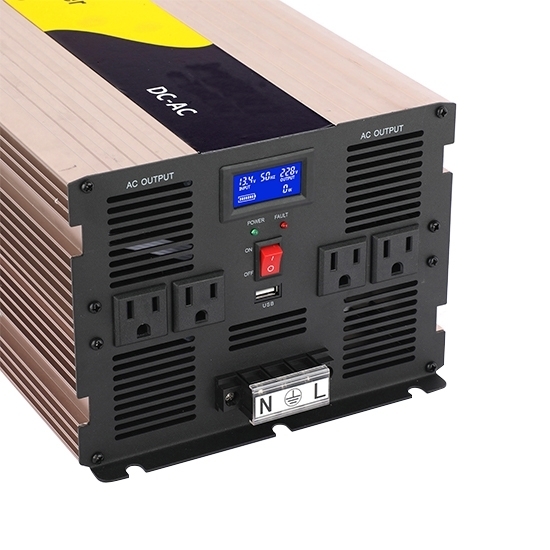

Pure Sine Wave Inverter Output Sockets (Optional)
Note: Inverter output voltage is 1-phase (L, N, G) only, Do not provide split phase configuration (L1, L2+N, G).

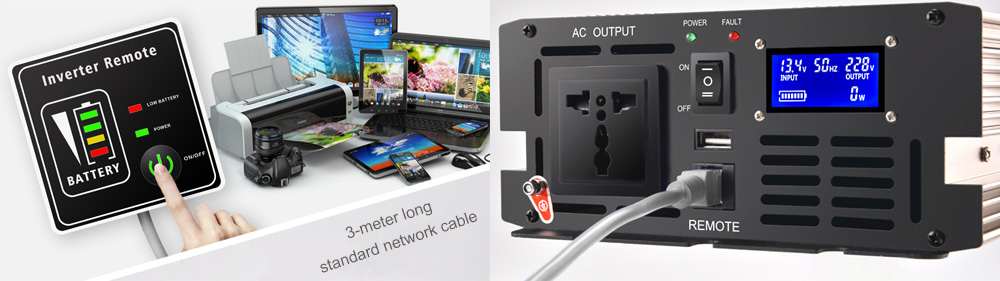

Pure Sine Wave Inverter Remote Control LCD Display (Optional)
- Pure sine wave power inverter is available with remote control: wired control and wireless control.
- LCD display shows input voltage, output voltage, output frequncy, battery capacity and power.
