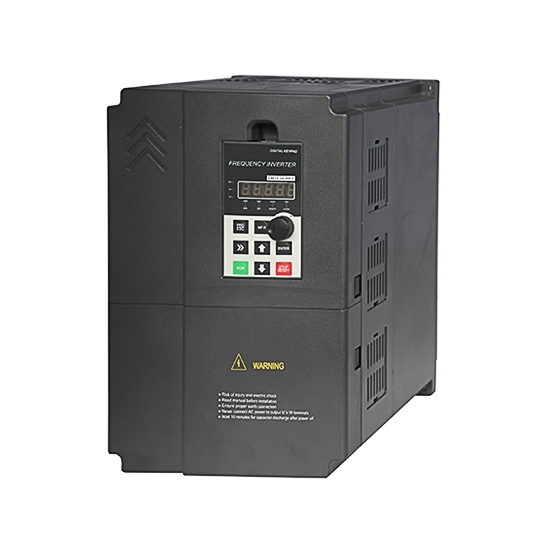

2.2 KW Three Phase Solar Pump Inverter, AC 220V
from
$312.46
Ex Tax: $312.46
- Stock: In Stock
- Model: GK330-SP1-2d2
- Weight: 1.00
- SKU: GK330-SP1-2d2
This 3-phase solar pump controller is compatible with wide input/output voltages, operates at -10°C to 40°C, and has strong shock resistance (5.9m/s² acceleration). The vfd for solar pump features MPPT tracking, intelligent speed regulation, no condensation at <95% RH, and a user-friendly design. Suitable for various outdoor environments.
Features
- High-Efficiency MPPT Control: This 2.2kW solar pumping inverter utilizes advanced MPPT technology to track the optimal operating point of solar panels in real-time, optimizing both voltage and current for system efficiency of up to 98%.
- Smart Sleep Mode: Automatically adjusts its operation based on sunlight intensity. The water pump inverter enters sleep mode during low sunlight to save energy and quickly resumes operation when sunlight increases, maximizing solar resource utilization.
- Water Level Adaptive Control: Integrated with water level sensing, the VFD solar inverter automatically stops when the water level is high to prevent overflow and restarts when the water level is low to avoid dry running, enabling unattended automated management.
- Intelligent User Interface: The 220V solar pumping inverter features an intuitive control panel with support for water level detection and smart control, ensuring user-friendly and safe operation while preventing equipment damage.
- Fault Self-Protection: Built-in multiple protection mechanisms immediately activate self-protection in case of faults, ensuring stable system operation and enhancing overall system reliability.
- AC Bypass Backup: Includes an integrated AC bypass function. During insufficient or no sunlight, the 3-phase solar pump controller automatically switches to an AC power supply, ensuring uninterrupted water pumping.
Details

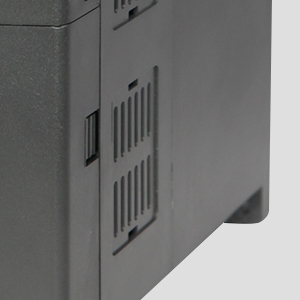

Air Vents
Prime-quality 2.2kW solar water pump inverter has high-density ventilation ports for excellent cooling, ensuring stable operation in high-temperature environments. The powerful DC heat sink operates quietly, effectively reducing the heat generated during inverter use, with intelligent start-stop control. An independent air duct design establishes a completely sealed environment, preventing dust and moisture from reaching the circuit board area.

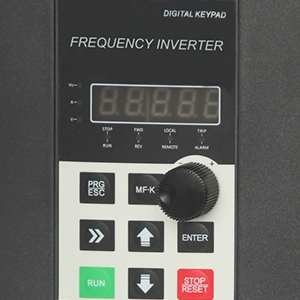

Digital Keypad
The digital keypad of the 3-phase solar pump controller is clear and easy to use, directly controlling the start, stop, and acceleration functions. Users can easily set the inverter's parameters and adjust the output frequency to control the pump speed, meeting various operational needs effortlessly. The intuitive design of the digital keypad enhances the efficiency and convenience of the solar pump system's operation.

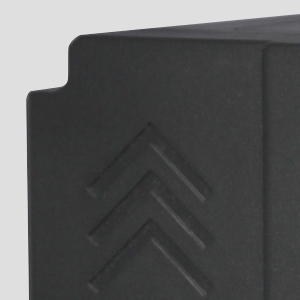

Rugged Casing
The top-performing and advanced 2.2kW solar variable frequency drive for pumps is compact, and the sturdy shell has good anti-fall, flame retardant, anti-aging, corrosion-resistant facts, effective insulation against moisture and dust, stable operation, reliability, and safety. It not only protects the circuit and electronic parts inside the equipment but also ensures the PV pump inverter's safety, stability, and reliability, capably extending the product life.
Applications
Agricultural Irrigation
Industrial Applications
Farm Livestock
Pool Water Supply

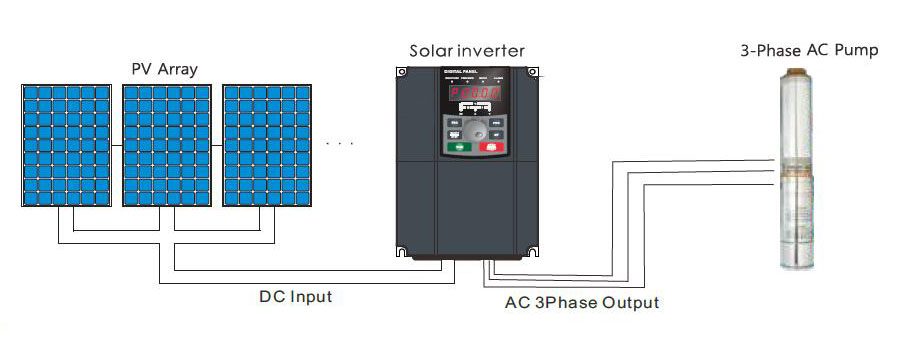

Solar Pump Inverter Working System
| GK330 | Series inverter (for photovoltaic applications) |
| - | Voltage range: SP1S: DC 250~ 400V to 1-phase AC 220V |
| 2D2 | Adaptable motor power: 2D2 (2.2KW) |
| Model | SP1-2d2 |
| Rated Power | 2.2 kW |
| Min. DC Voltage | 120V |
| Max. DC Voltage | 400V |
| Recommended MPPT Range | 250V~400V |
| AC Output | AC 3 Phase 220V |
| Output Current | 9A |
| Output Frequency | 0~50/60Hz |
| Power Factor | ＞0.99 |
| Communication Mode | RS485 Communication |
| Protection Class | IP20 |
| Ambient Temperature | -10℃~40℃ (ambient temperature at 40℃~50℃, please keep derated use) |
| Storage Temperature | -20℃~60℃ |
| Humidity | Smaller than 95% RH, non-condensation |
| Cooling | Forced Air Cooling |
| Altitude | Lower than 1000m |
| Humidity | Less than 95% RH, without condensing |
| Vibration | Less than 5.9m/s² (0.6g) |
| Size ( W*H*D) | 120*205*166(mm) |
| Installation Size (W*H*φ) | 108*195*φ4.5(mm) |
| Gross Weight | 3kg |

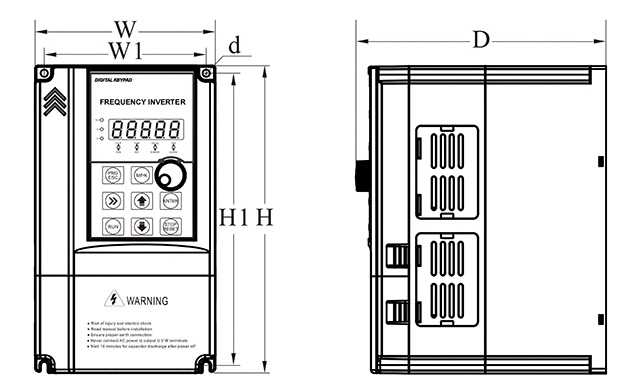

Solar inverter appearance and installing dimension (mm)
