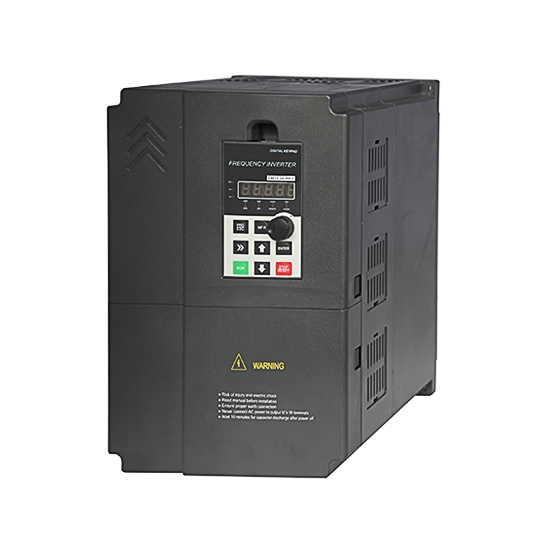

15 KW Three Phase Solar Pump Inverter
from
$596.69
Ex Tax: $596.69
- Stock: In Stock
- Model: GK330-SP3-015
- Weight: 1.00
- SKU: GK330-SP3-015
15kW solar variable frequency drive comes with self-protection and automatic sleep function and works at (-10°C, 40°C), storage temperature is between (-20°C, 60°C). The pump inverter's humidity is less than 95%RH, without condensing. AC output current 32A at 3-phase 380V recommended DC MPPT range 350V~750V.
Features
- Solar pump inverter adopts advanced MPPT control technology, real-time detection of solar panels power voltage, tracking the highest voltage and current, efficiency is as high as 98%.
- It can enter automatically into sleep mode when the intensity of sunlight is weak, as well as exit the sleep mode when the intensity of sunlight is becoming strong.
- Automatic sleep when on the high-water level and automatic restart when on the low-water level to realize automatic control through the water level.
- Smart operation, water level detection, and operation panel to prevent overflow and dry pumping.
- Protect itself in trouble and improve the reliability of the whole system.
- The bypass- AC source which runs automatically when the sun is not sufficient or absent.
Details
Air Vents
The cost-effective and advanced 15 kW solar pump inverter's high-density vents dissipate heat superbly, ensuring stable operation in high-temperature environments. DC powerful heat sink, silent operation, effectively reducing the heat generated by using the inverter, intelligent start-stop control. The design of independent air ducts can form an airtight space, effectively preventing dust and water mist from entering the circuit board part.

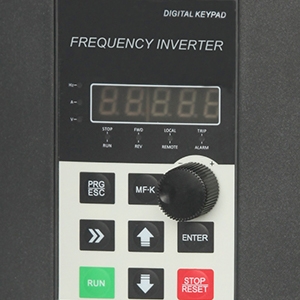

Digital Keypad
The digital keypad of the 15 kW 3-phase solar pump inverter is clear and easy to use, directly controlling the start, stop, and acceleration functions. Users can easily set the inverter's parameters and adjust the output frequency to control the pump speed, meeting various operational needs effortlessly. The intuitive design of the digital keypad enhances the efficiency and convenience of the solar pump system's operation.

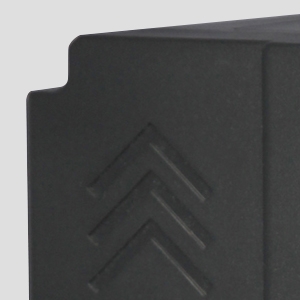

Rugged Casing
The superior performance 15 kW solar pump inverter is compact, and the sturdy shell has good anti-fall, flame retardant, anti-aging, and corrosion-resistant features, effectively isolates moisture and dust, has stable operation, and is safe and reliable. It not only protects the circuit and electronic components inside the pump inverter but also ensures safety, stability, and reliability, effectively protecting and extending the product life.
Applications
Agricultural Irrigation
Industrial Applications
Farm Livestock
Pool Water Supply
Solar Pump Inverter Working System
| GK330 | Series inverter (for photovoltaic applications) |
| - | Voltage range: SP1S: DC 250~ 400V to 1-phase AC 220V |
| 015 | Adaptable motor power: 015 (15 KW) |
| Model | SP3-015 |
| Rated power | 15kW |
| Voltage input | DC 350~750 (V), AC 380~460 (V) at 3-phase (When the input is AC, the inverter output voltage is equal to the input voltage) |
| Min. DC voltage | 280V |
| Max. DC voltage | 750V |
| Recommended DC MPPT range | 350~750(V) |
| AC output current | 32A at 3-phase 380V |
| Output frequency | 0~50/60 (Hz) |
| Power factor | >0.99 |
| Communication mode | RS485 communication |
| Protection class | IP20 |
| Ambient temperature | -10°C~+40°C (ambient temperature at 40°C~50°C， please keep derated use ) |
| Storage temperature | -20°C~+60°C |
| Humidity | Smaller than 95%RH, non-condensation |
| Cooling | Forced Air cooling |
| Altitude | Lower than 1000m |
| Humidity | Less than 95%RH, without condensing |
| Vibration | Less than 5.9 m/s2 (0.6 g) |
