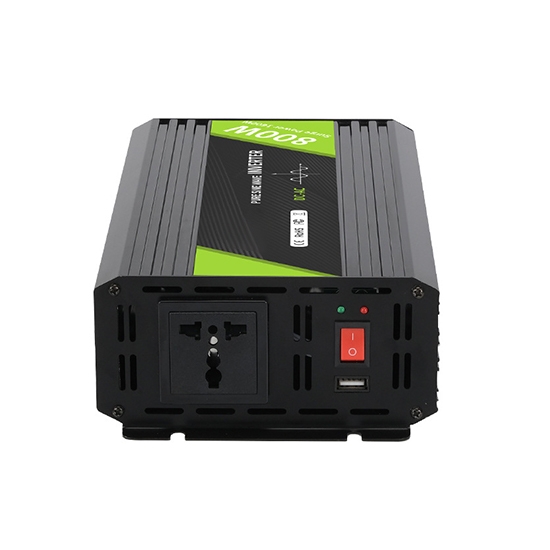

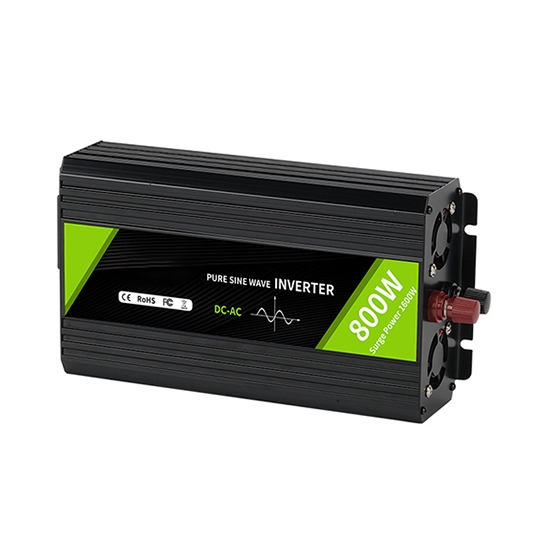

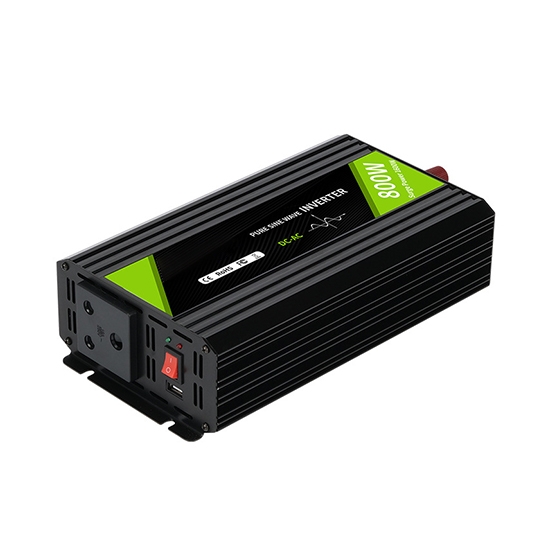

12V 800 Watt Pure Sine Wave Inverter
from
$173.97
Ex Tax: $173.97
- Stock: In Stock
- Model: HZTOHZ-PSWI-12V-800W
- Weight: 1.00
- SKU: HZTOHZ-PSWI-12V-800W
A 12V 800 watt pure sine wave inverter is a device that converts direct current (DC) from a battery or solar panel into alternating current (AC), peak power can reach 1600W. It produces a pure sine wave output. 800W pure sine wave inverter is ideal for powering small to medium-sized appliances, including lights, fans, TVs, and small refrigerators. It’s commonly used in solar systems, RVs, boats, and during power outages to ensure reliable and safe power for essential devices.
Features:
- Pure sine wave. 100% pure sine wave output, low distortion, waveform and main power line AC waveform are basically the same, equipment accuracy is small, low interference, low noise, strong load capacity, can meet any type of AC load, without damaging the load.
- Aluminum alloy shell. Aluminum is lightweight, reducing the overall weight of the pure sine wave solar power inverter, making it easier to handle and install. The sturdy construction of an aluminum alloy shell also provides robust protection against physical damage and electromagnetic interference.
- Lower consumption and higher efficiency. The output current is the same as the household, and the power conversion efficiency is high, up to 90%, low standby power consumption.
- Various protection. 800 watt pure sine wave inverter with various protections, such as low voltage protection, over voltage protection, overload protection, over temperature protection and short circuit protection.
Details:

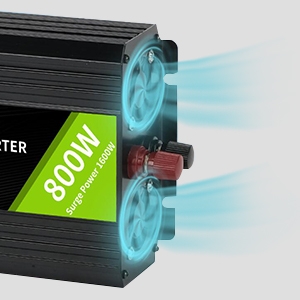

Cooling Fan
By maintaining optimal operating temperatures, the fan ensures consistent power output and improves the inverter's reliability and longevity. It also allows the pure sine inverter to handle higher loads without overheating. Additionally, cooling fans reduce the risk of thermal shutdowns, ensuring continuous operation even in high ambient temperatures or when running for long periods.
Multiple protection
Multiple protection in a inverter enhances both safety and reliability. It safeguards the device and connected appliances from over voltage, under voltage, short circuits, over temperature, and overloading, ensuring longevity and optimal performance. These protections prevent damage to sensitive electronics, reduce the risk of fire hazards, and enhance the overall durability of the 12 volt pure sine wave inverter.

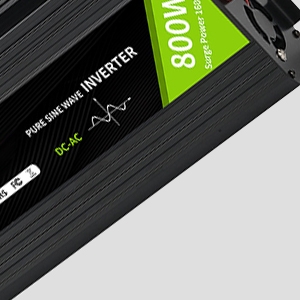

Aluminum Alloy Shell
It provides excellent heat dissipation, preventing overheating during prolonged use. Its lightweight nature makes the pure sine wave power inverter easier to handle and install, while still being strong and durable enough to protect internal components from mechanical damage. Aluminum is also resistant to corrosion, ensuring longevity even in harsh environments.
Applications:
Caravan
Power Failure
Outdoor Camping

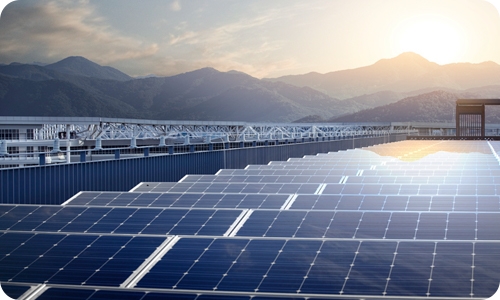

Solar Industry
| Model | HZTOHZ-PSWI-12V-800W |
| Output power | 800W |
| Peak power | 1600W |
| Input voltage | DC12V (9-15.5V) |
| Output voltage | (100VAC/110VAC/120VAC/220VAC/230VAC/240VAC)±5% |
| Unload current less than | ≤0.6A |
| Output frequency | 50Hz or 60Hz |
| Output waveform | pure sine wave |
| Waveform distortion | THD≤3% (pure resistive load) |
| USB | 18W fast charging |
| Max output efficiency | 88% |
| Low voltage protection | pre-alarm (alarm off after 1 sound), LED red light on, voltage contiously reduce and shutdown |
| Over voltage protection | pre-alarm (alarm off after 2 sounds), LED red light on, shutdown |
| Overload protection | continuous alarm, LED red light on. shutdown |
| Over temperature protection | pre-alarm (alarm off after 3 sounds), temperature contiously rise, LED red light on, shutdown |
| Short circuit protection | perfect protection and no damage the circuit |
| Input reverse polarity protection | fuse burn-out |
| Low voltage alarm | 10.5±0.5V |
| Low voltage protection | 9.5±0.5V |
| Over voltage protection | 15.5±0.5V |
| Low voltage recover | 13±0.5V |
| Over voltage recover | 14.5±0.5V |
| Working temperature | -20 ℃~50 ℃ |
| Cooling method | intelligent air cooling |
| Product dimension | 286mm*145mm*70mm |
| Net weight | 2.02 kg |

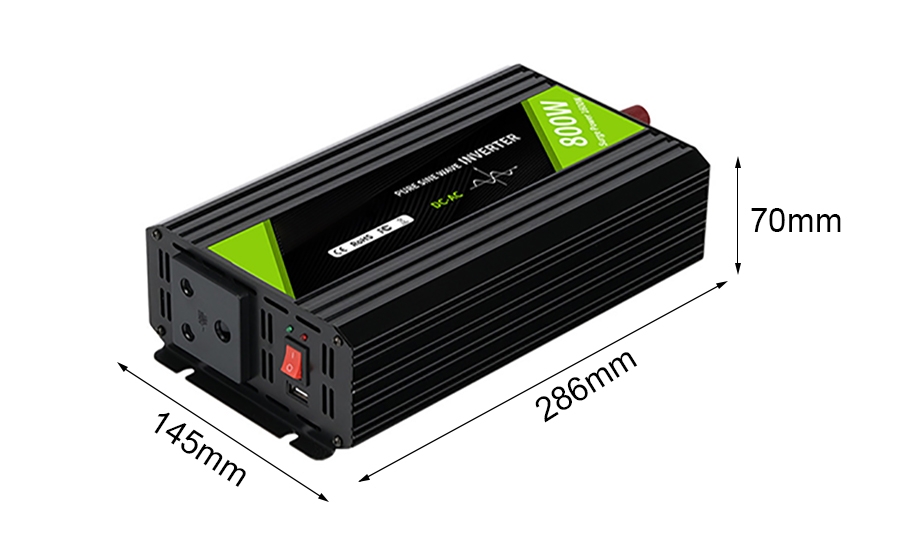

800W Pure Sine Inverter Dimension (Unit: mm):

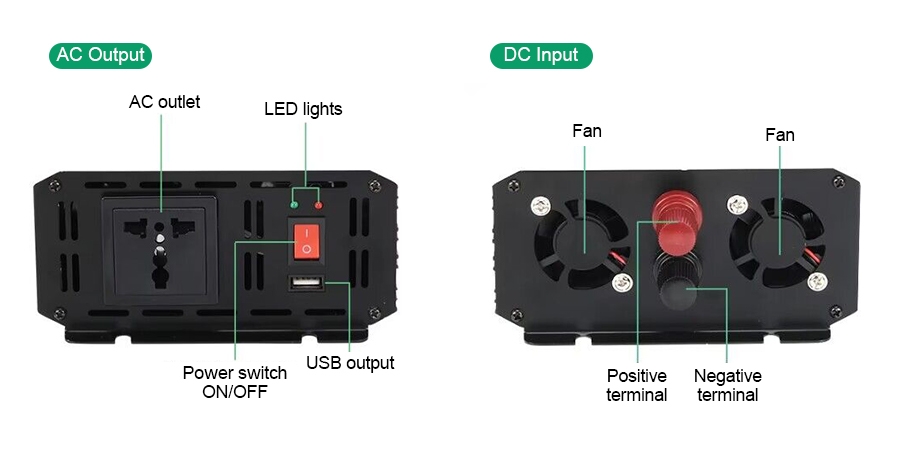

Structure:

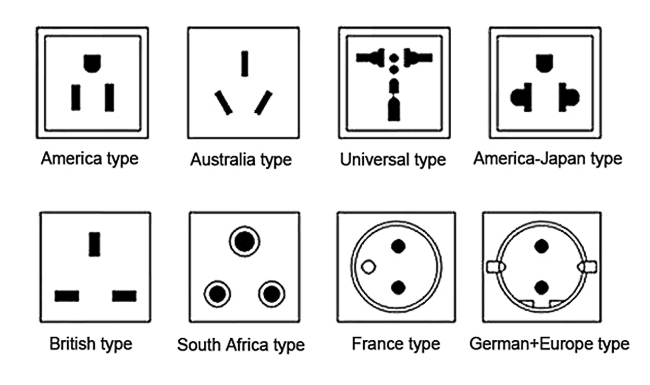

Pure Sine Wave Inverter Output Sockets (Optional):
