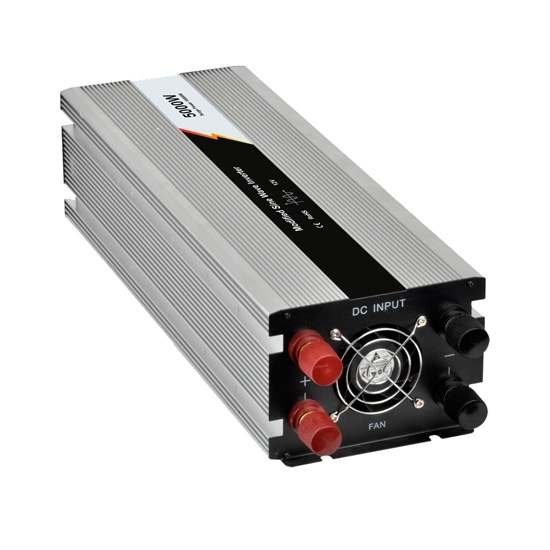

48v 5000w Inverter, 48v To 120v/240v Power Inverter
from
$570.92
Ex Tax: $570.92
- Stock: In Stock
- Model: HZTOHZ-MSWI-48V-5000W
- Weight: 1.00
- SKU: HZTOHZ-MSWI-48V-5000W
5000W modified sine wave power inverter with cheap price for sale, 110V AC, 120V AC, 220V AC, 230V AC or 240V AC, durability and efficiency can be reach 88%, ideal portable power converter on the go.
Note: Refrigerator or similar to the refrigerator load equipment, need to choose 10 times more power inverter.
Features:
- Built-in temperature-controlled cooling fan with low noise.
- 5000 Watt continuous and 10000 Watt peak power for relaible replenishment.
- Two AC household power outlets: converting DC vehicle's power to AC power for electronic devices.
- USB charging port: powering your USB compatible devices such as cell phones, laptops, tablets (iPad), players, etc.
- Multi security protections: high voltage, low voltage, overload, overheating, short circuit (reverse polarity connect).
- Durable construction, easy installation and high efficiency: ideal for use on road trips, vacations, work trips, camping and other outdoor activities.
Details:

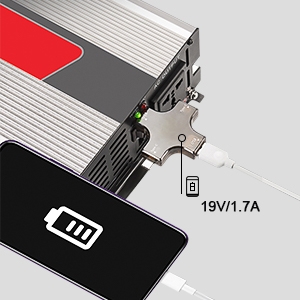

USB QC 3.0 Technology
Power inverter 2000W with USB QC 3.0 technology offer rapid charging for electronic devices, ensuring faster and more efficient power delivery. Providing a convenient and quick solution for charging smartphones and other compatible devices, enhancing connectivity and convenience.

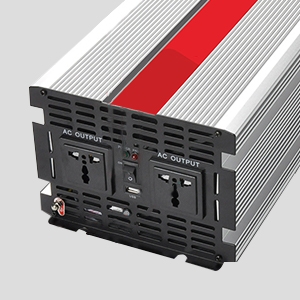

Output Port
Inverter 48V with USB output, signal indicator, power switch, charging indicator, AC output port. Providing the electrical output for connected devices. These ports are crucial for delivering reliable and compatible power to various electronic appliances and systems.

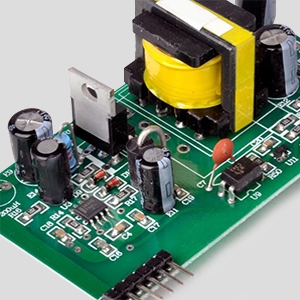

High-end Chip
High-end chips and high-quality MOS tubes. It enables the inverter to have these multiple protections, such as: under-voltage protection, over-voltage protection, overload protection, and short-circuit protection. Ensure the performance of the 2000 watt RV inverter is more stable.
Applications:
Data Center
Medical Device
Recreational Vehicle
Electric Tool
| Model | HZTOHZ-MSWI-48V-5000W | ||
| Rated power | 5000W | ||
| Peak power | 10000W | ||
| Input voltage | DC 12V | DC 24V | DC 48V |
| Output voltage | 1-Phase (L, N, G) 110V AC / 120V AC or 220V AC / 230V AC / 240V AC ±5% - NOT provide split phase configuration (L1, L2+N, G) | ||
| Unload current less than | 0.9A | 0.5A | 0.35A |
| Output frequency | 50Hz±0.5Hz or 60Hz±0.5Hz | ||
| Output waveform | Modified Sine Wave | ||
| USB port | 5V 2A | ||
| Max. efficiency | 88% | 90% | 92% |
| Input voltage range | 9.5-15.5V | 19-31V | 38-62V |
| Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±0.5V |
| Low voltage protection | 9.5±0.5V | 19±0.5V | 38±0.5V |
| Over voltage protection | 15.5±0.5V | 31±0.5V | 62±0.5V |
| Low voltage recover | 12±0.5V | 23±0.5V | 46±0.5V |
| Over voltage recover | 14±0.5V | 28±0.5V | 56±0.5V |
| Protection function | Low voltage - Alarm at first; voltage continuously reducing, LED Red light on & shut down. | ||
| Over voltage - LED Red light on, shut down | |||
| Over load - LED Red light on, shut down | |||
| Over temperature - Alarm at first; temperature continuously rising, LED Red light on & shut down | |||
| Short circuit - LED Red light on | |||
| Input reverse polarity - Fuse burn-out | |||
| Working temperature | -10 ℃ ~ +50 ℃ | ||
| Storage temperature | -30 ℃ ~ +70 ℃ | ||
| Dimension | 589x180x130 mm | ||
| Net./gross weight | 9000g/10300g | ||
| Warranty | 1 year | ||
| Cooling method | Intelligent cooling fan | ||

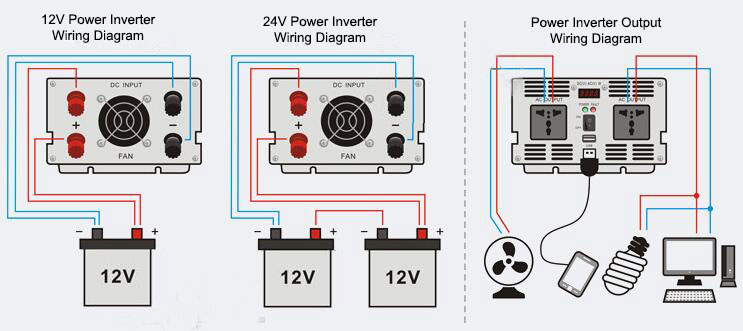

Wiring Diagram:
Note: The connection of 48V power inverter with batteries is similar to the wiring of 24V inverter, and the batteries is connected in series.
