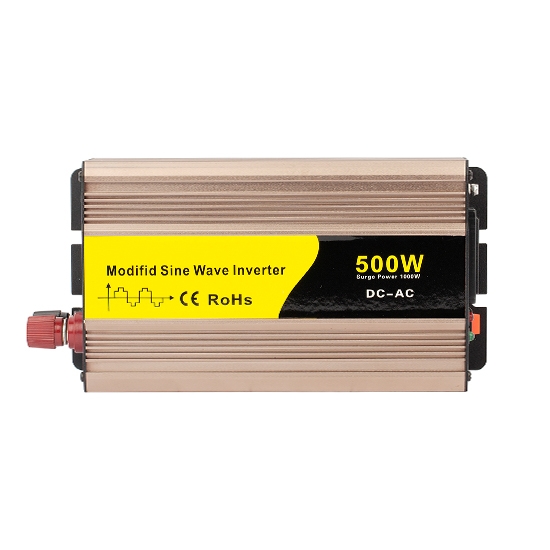

24v 500w Inverter, 24v To 110v/230v Power Inverter
from
$69.36
Ex Tax: $69.36
- Stock: In Stock
- Model: HZTOHZ-MSWI-24V-500W
- Weight: 1.00
- SKU: HZTOHZ-MSWI-24V-500W

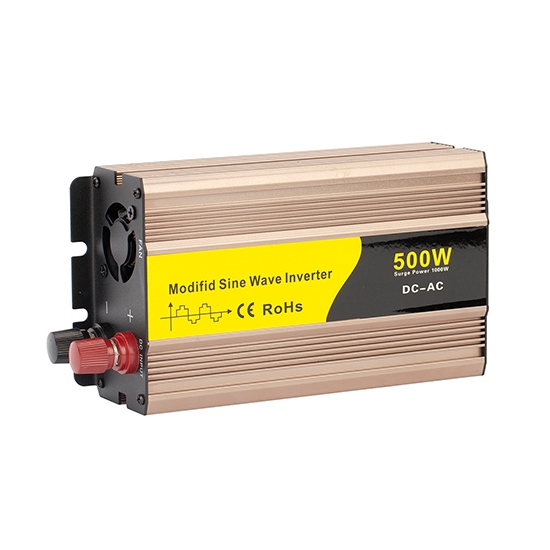

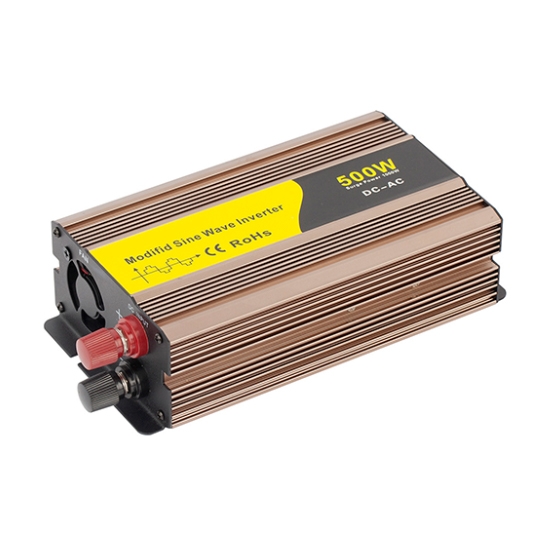

Low-cost 500W power inverter with peak power 1000w converts 24V DC to 110V/220V AC household power. With full safety protections against over voltage, under voltage, overload, over temperature, short circuit, and reverse connection.
Note: Refrigerator or similar to the refrigerator load equipment, need to choose 10 times more power inverter.
Features
- The solar inverter for home is made of high-quality aluminum alloy material and low-pressure casting.
- The thickened shell of the 24V power inverter for home can increase the pressure resistance and anti-corrosion function and has better heat dissipation performance.
- It is suitable for car power supply/mobile phone charging/outdoor power supply.
- Using good conductive materials, the power inverter's conversion rate is above 90%, and the output is more stable.
- The impact ability is excellent and can achieve the effect of a power frequency machine.

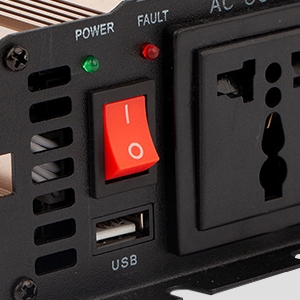

- With a power ON/OFF switch and USB port, they make a power inverter use easier.
Details

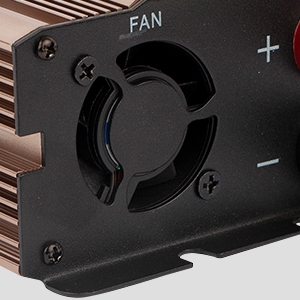

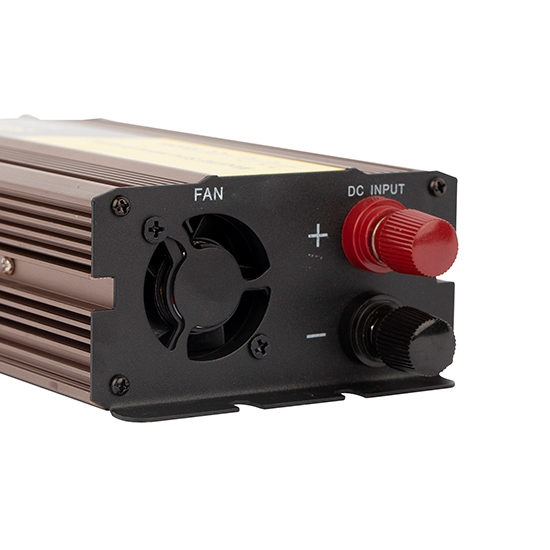

Intelligent Cooling Fan
After reaching 45 degrees Celsius, a 300-watt power inverter will automatically start the cooling fan to dissipate the heat, effectively reducing energy consumption. The fan adopts a ball structure, long life, high speed, and low noise.

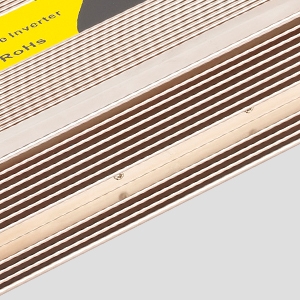

Aluminum Alloy Shell
With an aluminum alloy shell, the surface of the power inverter is oxidized by sandblasting, which has a better heat dissipation effect. At the same time, it has a beautiful appearance and does not change color permanently.

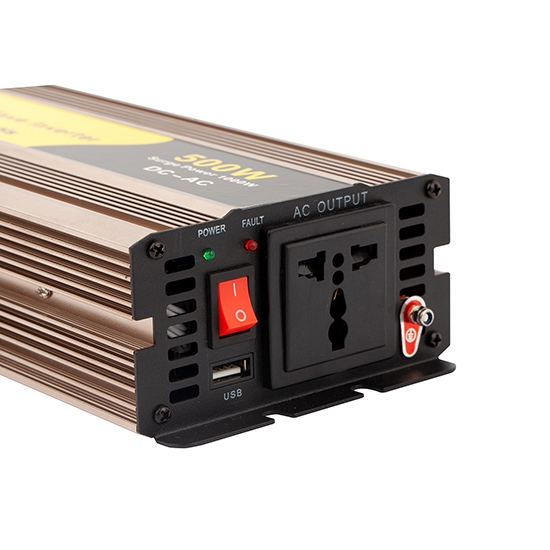

Multiple-functional Socket
Different socket specifications can be chosen from. 24v power inverters are usually equipped with multiple interfaces, including but not limited to standard three-hole sockets, two-hole sockets, USB interfaces, etc., to meet the charging and power supply needs of different electrical devices.
Applications
| Model | HZTOHZ-MSWI-24V-500W |
| Input Voltage | DC 24V |
| Output Voltage | 1-Phase (L, N, G) 110V/120V AC ±5% or 220V/230V/240V AC ±5% - NOT provide split phase configuration (L1, L2+N, G) |
| Unload Current (less than) | 0.1A |
| Continuous Power | 500W |
| Peak Power | 1000W |
| Output Frequency | 50Hz±0.5Hz or 60Hz±0.5Hz |
| Output Waveform* | Modified sine wave or Pure sine wave |
| Max. Efficiency | 90% |
| USB Port | QC 3.0 |
| Outlet Type | Universal outlet *1 |
| Input Voltage Range | 20V-31V |
| Low Voltage Alarm | 21V±0.5V |
| Low Voltage Protection | 20V±0.5V |
| High Voltage Protection | 31V±0.5V |
| Low Voltage Recover | 24V±0.5V |
| Over Voltage Recover | 29.5V±0.5V |
| Overload Protection | Yes |
| Overheat Protection | Yes |
| Short Circuit Protection | Yes |
| Reverse Connection Protection | Yes |
| Cooling Method | Intelligent cooling fan |
| Working Temperature | -10℃ ~ +50℃ |
| Storage Temperature | -30℃ ~ +70℃ |
| Product Size | 185x115x60mm |
| Net. Weight | 940g |
| Warranty | 1 year |
Note: * The AC output is 1-Phase (L, N, G), NOT Split Phase like USA standard (L1, L2+N, G).
Output Sockets (Optional)
Protection Function
- Low voltage. The alarm at first; voltage continuously reduce, LED Red light on & shut down.
- Over voltage. LED Red light on, shut down
- Over load. LED Red light on, shut down
- Over temperature. Alarm at first; temperature continuously rises, LED Red light on & shut down.
- Short circuit. LED Red light on
- Input reverse polarity. Fuse burn-out
