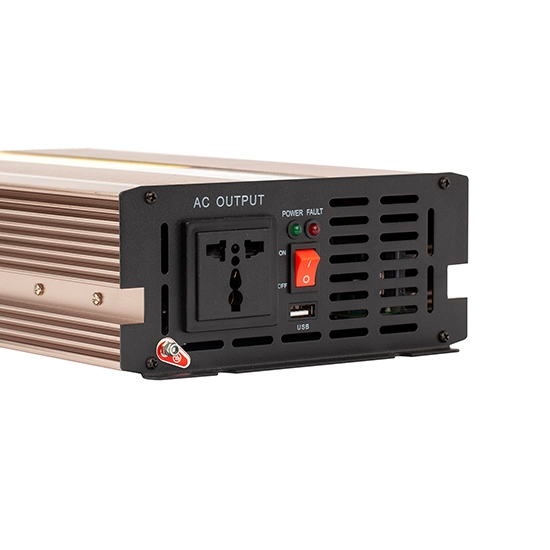

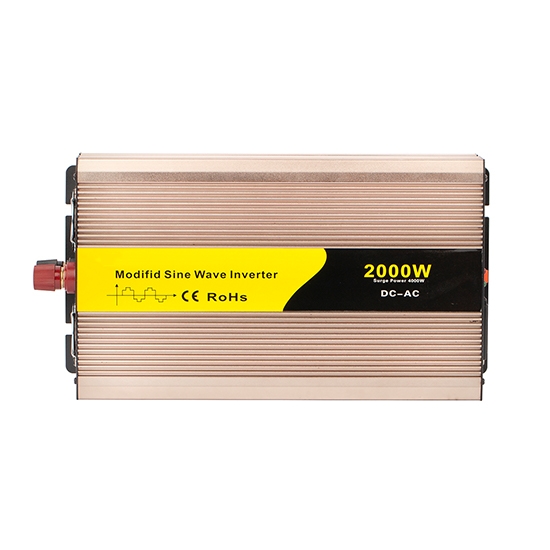

24v 2000w Inverter, 24v To 110v/220v Power Inverter
from
$191.87
Ex Tax: $191.87
- Stock: In Stock
- Model: HZTOHZ-MSWI-24V-2000W
- Weight: 1.00
- SKU: HZTOHZ-MSWI-24V-2000W
2000 Watt power inverter has 4000 Watt surge power, converting 24V DC to 110V/220V AC, with a built-in cooling fan and multi-protection to safeguard your device, best for use in camping, road trip, remote work site, for power failure emergencies or power back-up for home.
Note: Refrigerator or similar to the refrigerator load equipment, need to choose 10 times more power inverter.
Features
- The power inverter is installed with a hard shell of aluminum alloy, which enhances the heat dissipation performance.
- Equipped with LCD, convenient real-time display of voltage, and current.
- The inverter can be controlled remotely, convenient, and intelligent.
- The conversion efficiency of the inverter is up to 90%, reducing the energy loss of the inverter.
Details

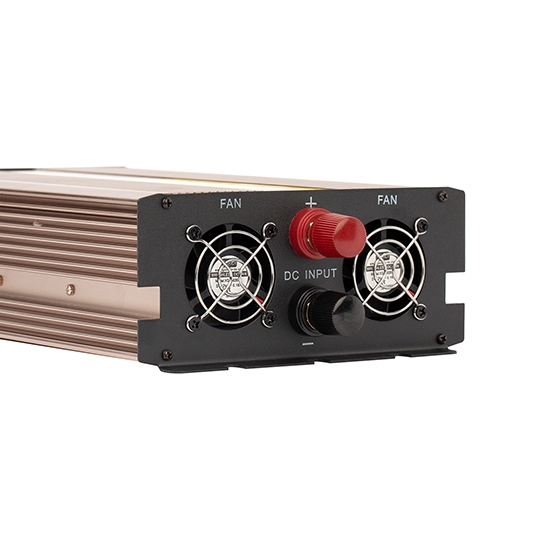

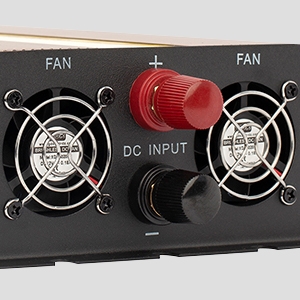

Intelligent Cooling Fan
After reaching 45 degrees Celsius, a 300-watt power inverter will automatically start the cooling fan to dissipate the heat, effectively reducing energy consumption. The fan adopts a ball structure, long life, high speed, and low noise.

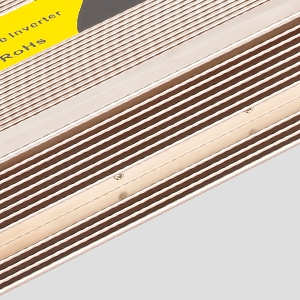

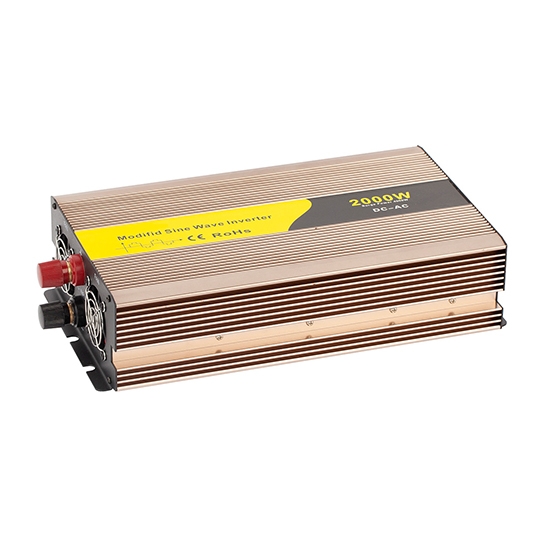

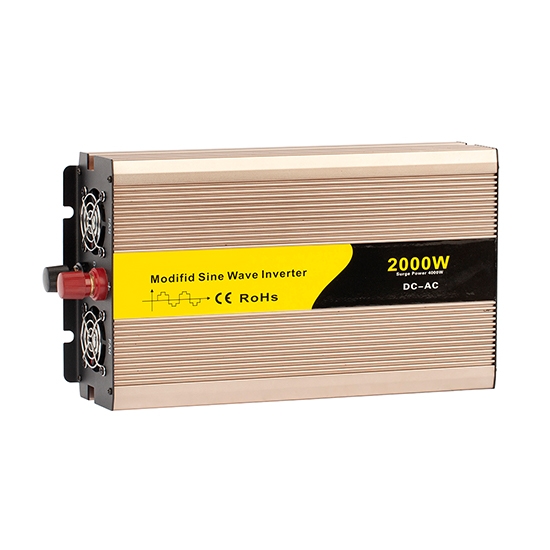

Aluminum Alloy Shell
With an aluminum alloy shell, the surface of the power inverter is oxidized by sandblasting, which has a better heat dissipation effect. At the same time, it has a beautiful appearance and does not change color permanently.

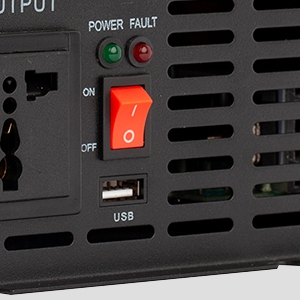

Multiple-functional Socket
Different socket specifications can be chosen from. 24v power inverters are usually equipped with multiple interfaces, including but not limited to standard three-hole sockets, two-hole sockets, USB interfaces, etc., to meet the charging and power supply needs of different electrical devices.
Applications
Refrigerator
Air Conditioning
Laundry
Microwave Oven
| Model | HZTOHZ-MSWI-24V-2000W |
| Input Voltage | DC 24V |
| Output Voltage* | 1-Phase (L, N, G) 110V/120V AC ±5% or 220V/230V/240V AC ±5% - NOT provide split phase configuration (L1, L2+N, G) |
| Unload Current (less than) | 0.5A |
| Continuous Power | 2000W |
| Peak Power | 4000W |
| Output Frequency | 50Hz±0.5Hz or 60Hz±0.5Hz |
| Output Waveform* | Modified sine wave or Pure sine wave |
| Max. Efficiency | 90% |
| USB Port | 5V 1A |
| Outlet Type* | Universal outlet *1 |
| Input Voltage Range | 20V-31V |
| Low Voltage Alarm | 21V±0.5V |
| Low Voltage Shutdown | 20V±0.5V |
| High Voltage Shutdown | 31V±0.5V |
| Low Voltage Recover | 24V±0.5V |
| Over Voltage Recover | 29.5V±0.5V |
| Overload Protection | Yes |
| Overheat Protection | Yes |
| Short Circuit Protection | Yes |
| Reverse Connection Protection | Yes |
| Cooling Method | Intelligent cooling fan |
| Working Temperature | -10℃ ~ +50℃ |
| Storage Temperature | -30℃ ~ +70℃ |

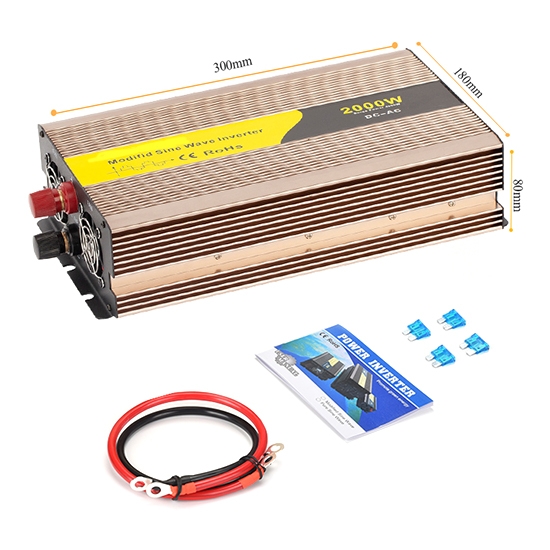

| Product Size | 300x180x80mm |
| Net. Weight | 3500g |
| Warranty | 1 year |
| Remote Control | Wired control (3m) or Wireless control (20m) -Wired control ONLY applies to pure sine wave inverter |
Note: * The AC output is 1-Phase (L, N, G), NOT Split Phase like USA standard (L1, L2+N, G).

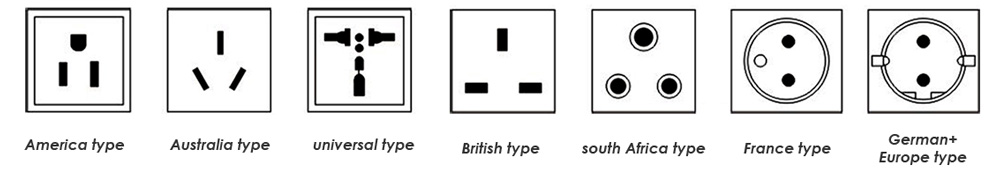

Output Sockets (Optional)

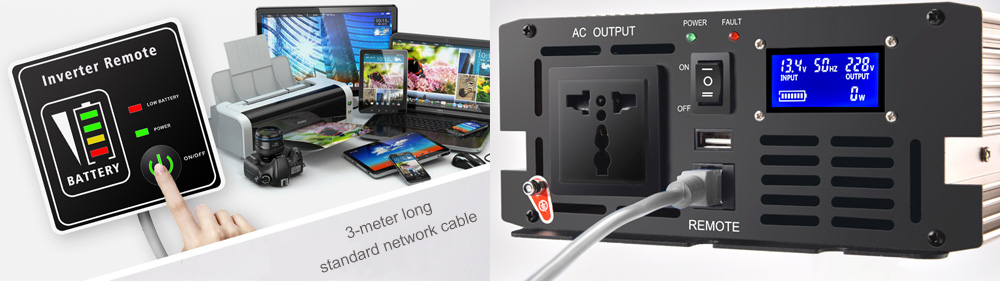

Pure Sine Wave Inverter Remote Control & LCD Display (Optional)
- Pure sine wave power inverter is available with remote control: wired control and wireless control.
- LCD display shows input voltage, output voltage, output frequncy, battery capacity and power.
Protection Function
- Low voltage. Alarm at first; voltage continuously reduced, and the LED Red light on & shut down.
- Over voltage. LED Red light on, shut down.
- Over load. LED Red light on, shut down.
- Over temperature. Alarm at first; temperature continuously rises, LED Red light on & shut down.
- Short circuit. LED Red light on.
- Input reverse polarity. Fuse burn-out.
