12v 600w Inverter, 12v To 110v/220v Power Inverter
from
$75.82
Ex Tax: $75.82
- Stock: In Stock
- Model: HZTOHZ-MSWI-12V-600W
- Weight: 1.00
- SKU: HZTOHZ-MSWI-12V-600W

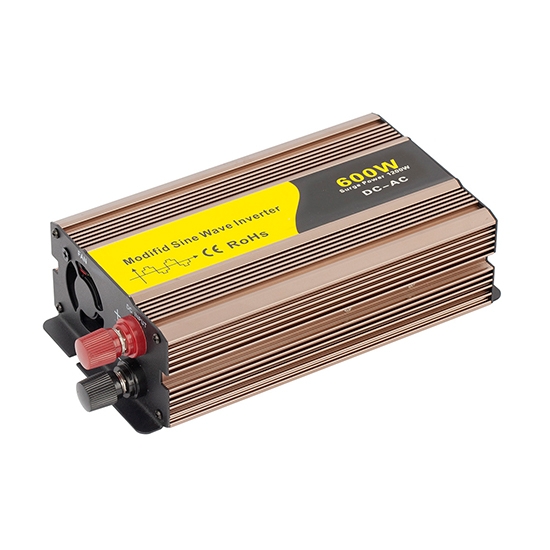

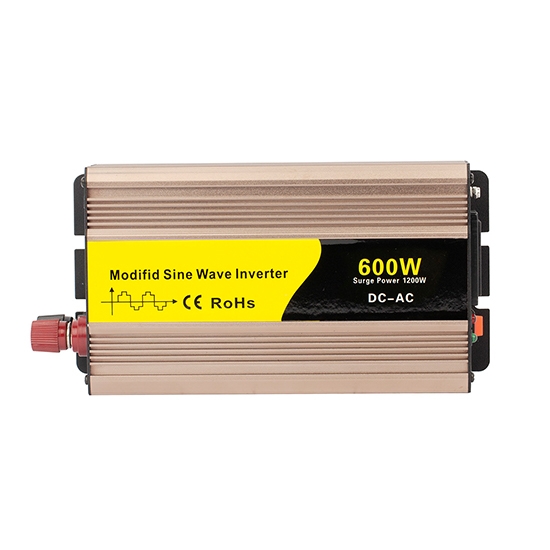

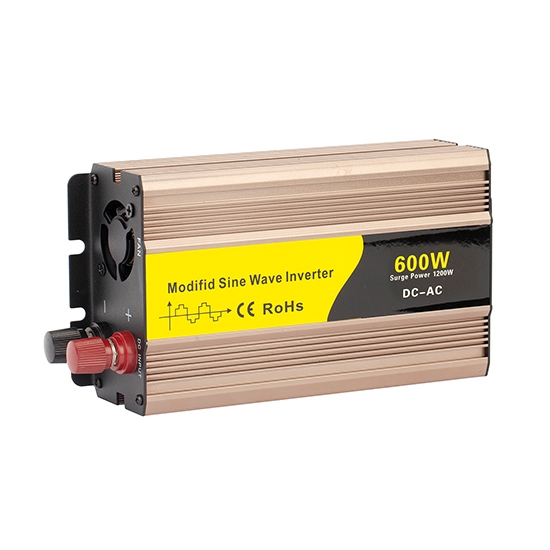

This 12V power inverter provides 600W continuous and 1200W peak power from car battery to 110V/120V or 220V/230V/240V AC household power. With full safety protections against low voltage, high voltage, overload, overheating, short circuit, and reverse connection, this portable power inverter is great for powering devices or appliances which is less than 600W such as mobile phones, laptops, iPads, kindle, digital cameras, fan, light, TV, etc.
Note: Refrigerator or similar to the refrigerator load equipment, need to choose 10 times more power inverter.
Features

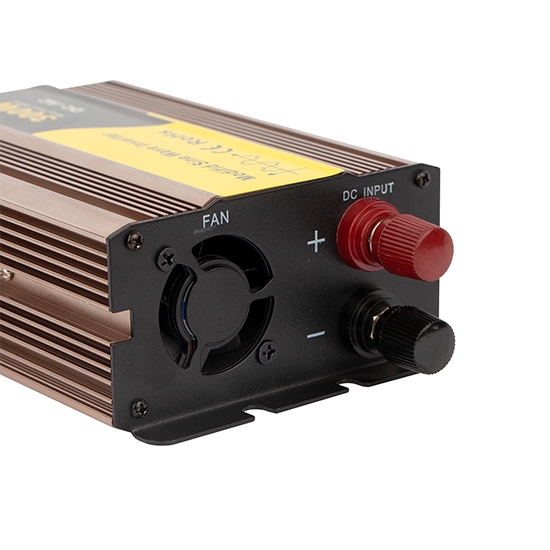

- Equipped with an intelligent cooling fan, the 600w inverter temperature reaches the specified value after the automatic start of fan cooling, effectively reducing energy consumption.
- Aluminum alloy shell, the surface of the sandblasted oxidation treatment for better heat dissipation, while taking into account the beauty of the long-lasting non-color change.
- Almost no sound at a low power load, the cooling fan of the power inverter has a long life, high speed, and low noise.
- The 600-watt power inverter has over-temperature protection, over-current protection, short-circuit protection, overload protection, over-voltage protection, and low-voltage protection.
Details
Conductive Material

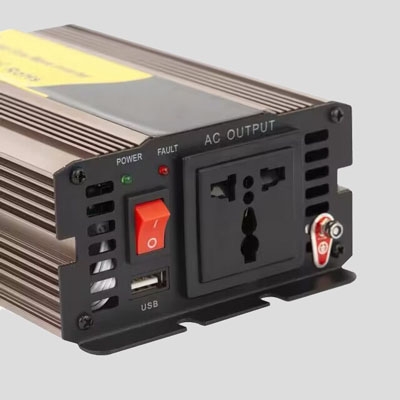

Universal switch and USB charging interface are all in one. Adopt good conductive material, and the conversion rate is more than 90%. The 12v power inverter's output is more stable, and the impact of the ability is excellent, up to the effect of frequency machines.

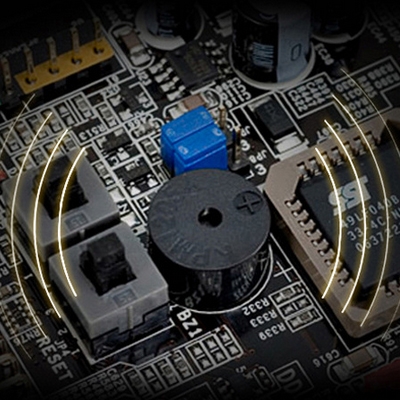

Beeping Alert Device
A beeping reminder device is installed to ensure the safety of the power inverter. When the batteries are low or insufficient, the 600-watt inverter will emit a ticking alarm to protect the inverter from damage due to insufficient voltage.

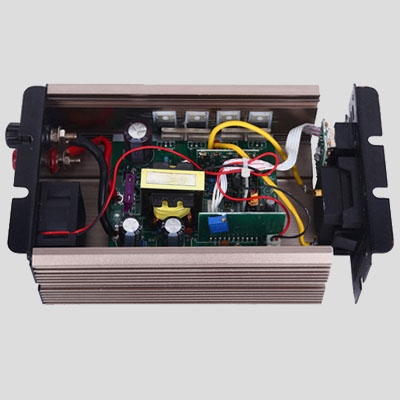

High-Performance Line Version
Using the SMT and SMD process, the volume of the electronic inverter reduced size, and weight reduction by 60% - 80% high reliability. Power inverter has strong vibration resistance, a low rate of defects in the welded joints, and high-frequency performance.
Applications:
Electronics
Laptop
Camera
Television
| Model | HZTOHZ-MSWI-12V-600W |
| Input Voltage | DC 12V |
| Output Voltage* | 1-Phase (L, N, G) 110V/120V AC ±5% or 220V/230V/240V AC ±5% - NOT provide split phase configuration (L1, L2+N, G) |
| Unload Current (less than) | 0.3A |
| Continuous Power | 600W |
| Peak Power | 1200W |
| Output Frequency | 50Hz±0.5Hz or 60Hz±0.5Hz |
| Output Waveform* | Modified sine wave or Pure sine wave |
| Max. Efficiency | 90% |
| USB Port | 5V 1A |
| Outlet Type* | Universal outlet *1 |
| Input Voltage Range | 10V-15.5V |
| Low Voltage Alarm | 10.5V±0.5V |
| Low Voltage Protection | 10V±0.5V |
| High Voltage Protection | 15.5V±0.5V |
| Low Voltage Recover | 12.3V±0.5V |
| Over Voltage Recover | 14.8V±0.5V |
| Overload Protection | Yes |
| Overheat Protection | Yes |
| Short Circuit Protection | Yes |
| Reverse Connection Protection | Yes |
| Cooling Method | Intelligent cooling fan |
| Working Temperature | -10℃ ~ +50℃ |
| Storage Temperature | -30℃ ~ +70℃ |

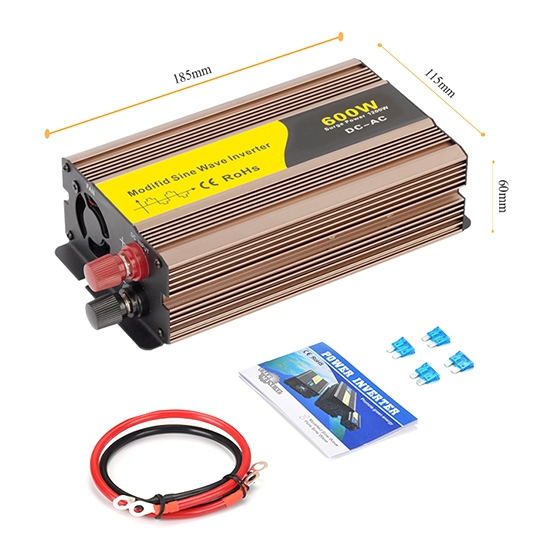

| Product Size | 185x115x60mm |
| Net. Weight | 940g |
| Warranty | 1 year |
| Remote Control * | Wired control (3m) or Wireless control (20m) -Wired control ONLY applies to pure sine wave inverter |
Note: * The AC output is 1-Phase (L, N, G), NOT Split Phase like USA standard (L1, L2+N, G).

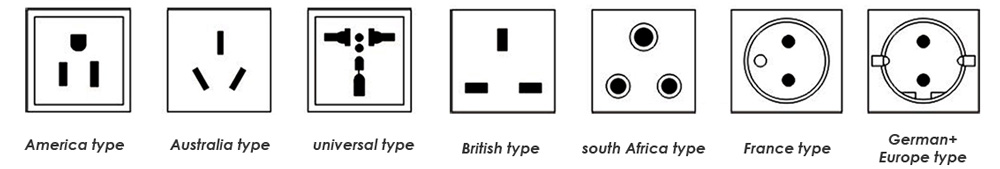

Output Sockets (Optional)
Protection Function
- Low voltage: Alarm at first; voltage continuously reduces, LED Red light on & shut down.
- Over voltage: LED Red light on, shut down.
- Over load: LED Red light on, shut down.
- Over temperature: Alarm at first; temperature continuously rises, LED Red light on & shut down.
- Short circuit: LED Red light on.
- Input reverse polarity: Fuse burn-out.
