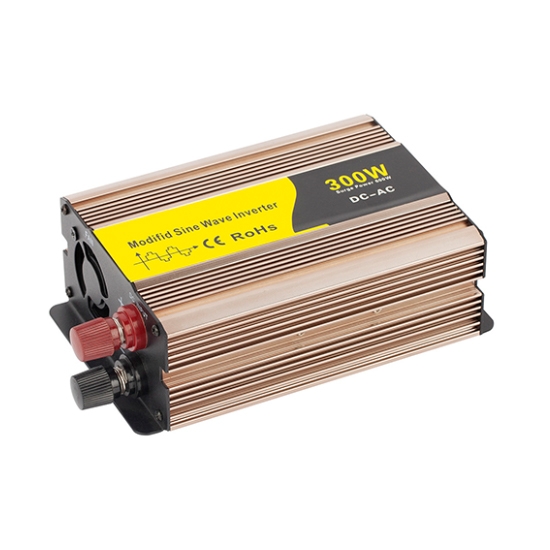

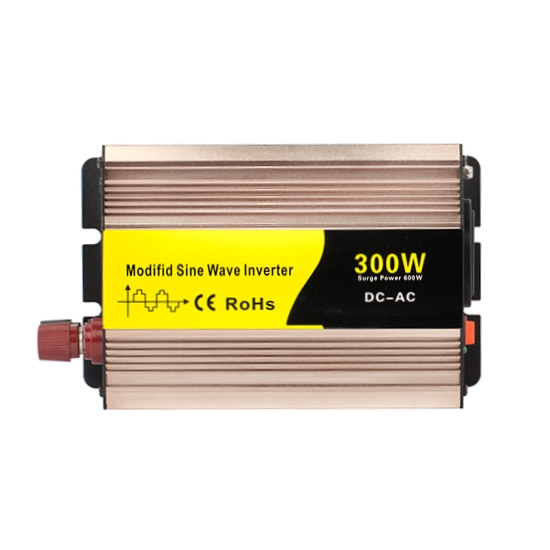

12v 300w Inverter, 12v To 110v/220v Power Inverter
Why buy from us?
Lorem Ipsum is simply dummy text of the printing and typesetting industry.
Ask a Question About This Product

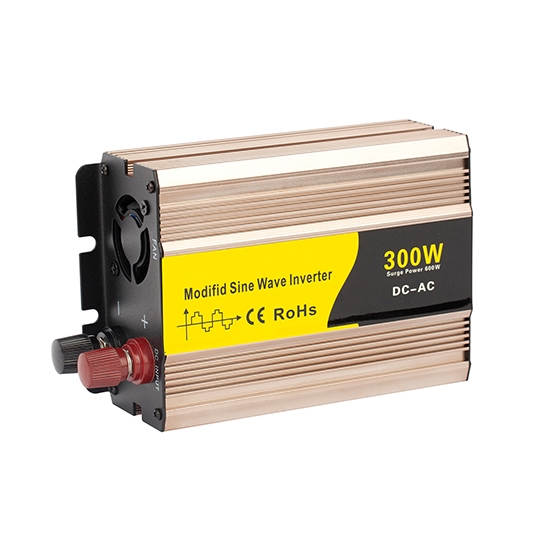

12v 300w Inverter, 12v To 110v/220v Power Inverter
from
$59.03
Ex Tax: $59.03
- Stock: In Stock
- Model: HZTOHZ-MSWI-12V-300W
- Weight: 1.00
- SKU: HZTOHZ-MSWI-12V-300W
300w inverter 12v has multi-protections against low voltage, high voltage, over load, overheating, short circuit, and reverse connection. The 12V power inverter output frequency with remote control is 50Hz±0.5Hz or 60Hz±0.5Hz. Affordable power inverter price, easy to use and install.
Note: Refrigerator or similar to the refrigerator load equipment, need to choose 10 times more power inverter.
Features
- The modified inverter is widely compatible with refrigerators, air conditioners, range hoods, and washing machines.
- Low-pressure casting of high-quality aluminum alloy material is adopted.
- Thickened shell, better heat dissipation performance, as well as pressure anti-corrosion.
- The 300W inverter has multiple intelligent safeguards for electricity safety.
- Adopt good conductive material, high-frequency correction wave output power up to 90%, and more stable output.
- The impact capacity of the power inverter is excellent, up to the effect of an industrial frequency machine, and can be used for vehicle power supply/cell phone charging/outdoor electricity.
Details
Conductive Material

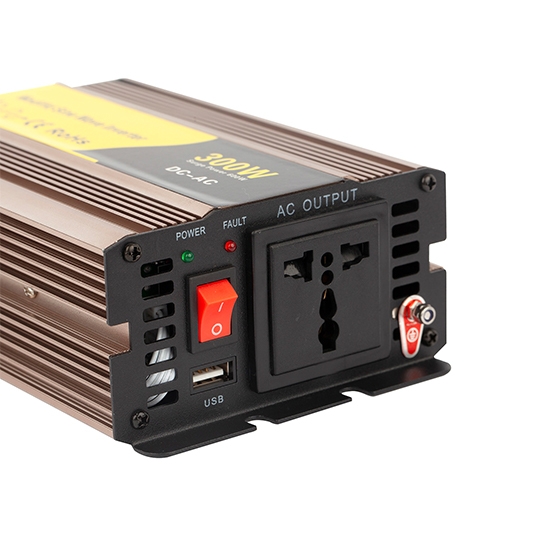

Universal switch and USB charging interface are all in one. Adopt good conductive material, and the conversion rate is more than 90%. The 12v power inverter's output is more stable, and the impact of the ability is excellent, up to the effect of frequency machines.

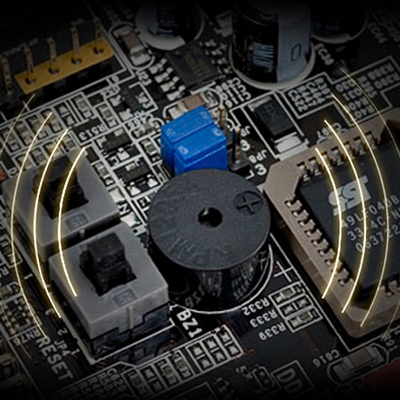

Beeping Alert Device
A beeping reminder device is installed to ensure the safety of the power inverter. When the batteries are low or insufficient, the 300-watt inverter will emit a ticking alarm to protect the 300w inverter from damage due to insufficient voltage.

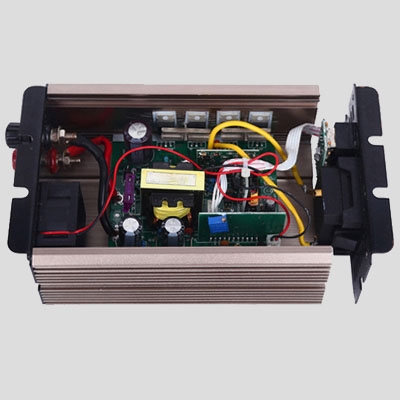

High-Performance Line Version
Using the SMT and SMD process, the volume of the electronic inverter reduced size, and weight reduction by 60% - 80% high reliability. Power inverter has strong vibration resistance, a low rate of defects in the welded joints, and high-frequency performance.
Applications:
Electronics
Laptop
Camera
Television
| Model | HZTOHZ-MSWI-12V-300W |
| Input Voltage | DC 12V |
| Output Voltage* | 1-Phase (L, N, G) 110V/120V AC ±5% or 220V/230V/240V AC ±5% - NOT provide split phase configuration (L1, L2+N, G) |
| Unload Current (less than) | 0.3A |
| Continuous Power | 300W |
| Peak Power | 600W |
| Output Frequency | 50Hz±0.5Hz or 60Hz±0.5Hz |
| Output Waveform* | Modified sine wave or Pure sine wave |
| Max. Efficiency | 90% |
| USB Port | QC 3.0 |
| Outlet Type* | Universal outlet *1 |
| Input Voltage Range | 10V-15.5V |
| Low Voltage Alarm | 10.5V±0.5V |
| Low Voltage Shutdown | 10V±0.5V |
| High Voltage Shutdown | 15.5V±0.5V |
| Low Voltage Recover | 12.3V±0.5V |
| Over Voltage Recover | 14.8V±0.5V |
| Overload Protection | Yes |
| Overheat Protection | Yes |
| Short Circuit Protection | Yes |
| Reverse Connection Protection | Yes |
| Cooling Method | Intelligent cooling fan |
| Working Temperature | -10℃ ~ +50℃ |
| Storage Temperature | -30℃ ~ +70℃ |

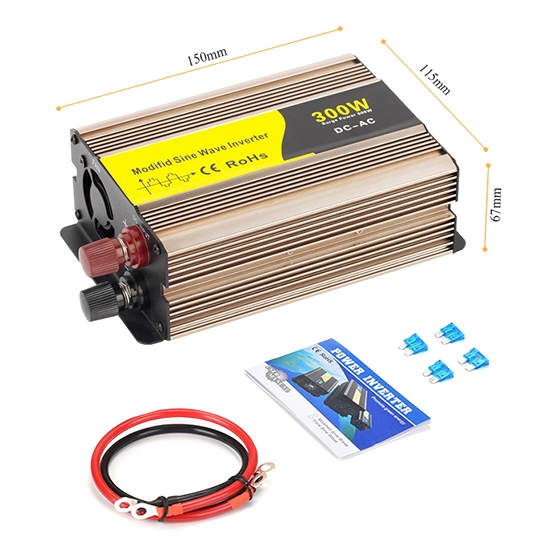

| Product Size | 150x115x60mm |
| Net. Weight | 700g |
| Warranty | 1 year |
| Remote Control * | Wired control (3m) or Wireless control (20m) -Wired control ONLY applies to pure sine wave inverter |
Note: * The AC output is 1-Phase (L, N, G), NOT Split Phase like USA standard (L1, L2+N, G).

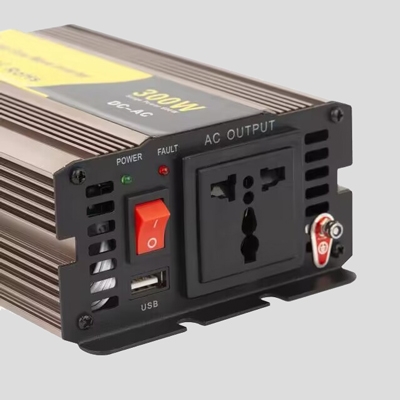

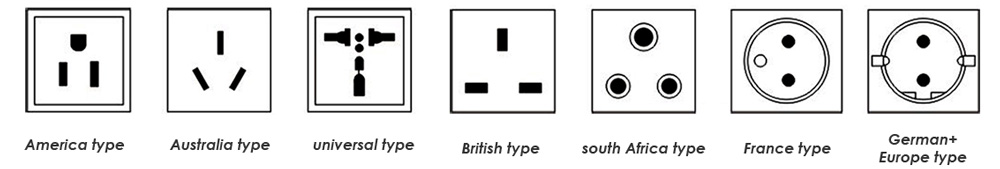

Output Sockets (Optional)
Protection Function
- Low voltage: Alarm at first; voltage continuously reduces, LED Red light on & shut down.
- Over voltage: LED Red light on, shut down.
- Over load: LED Red light on, shut down.
- Over temperature: Alarm at first; temperature continuously rises, LED Red light on & shut down.
- Short circuit: LED Red light on.
- Input reverse polarity: Fuse burn-out.
