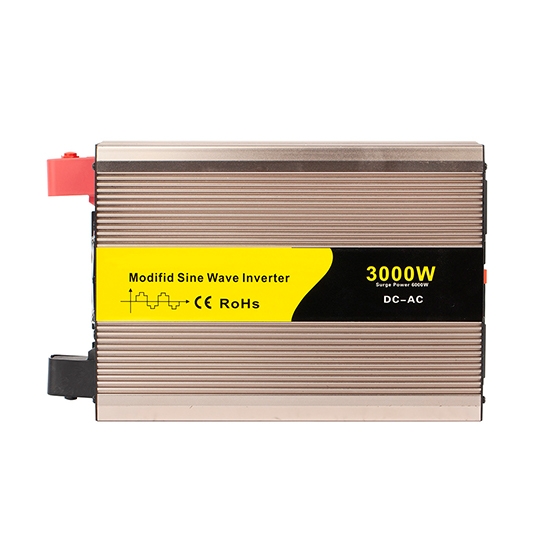

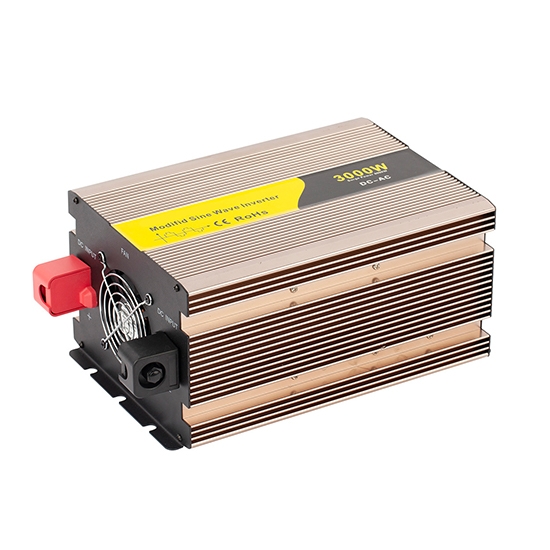

12v 3000w Inverter, 12v To 110v/220v Power Inverter
from
$262.90
Ex Tax: $262.90
- Stock: In Stock
- Model: HZTOHZ-MSWI-12V-3000W
- Weight: 1.00
- SKU: HZTOHZ-MSWI-12V-3000W

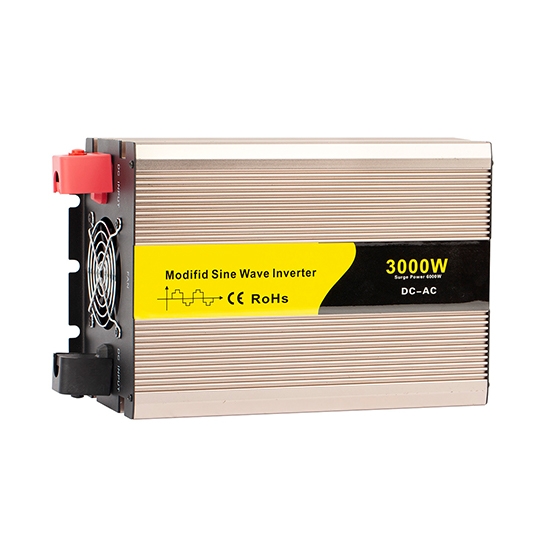

This modified sine wave 3kw inverter has an intelligent cooling fan, which promotes good automatic cooling performance. Max efficiency 90% and USB Port 5V 1A. 2000w inverter for home is usually applied to laptops, phones, cameras, and televisions.
Note: Refrigerator or similar to the refrigerator load equipment, need to choose 10 times more power inverter.
Features

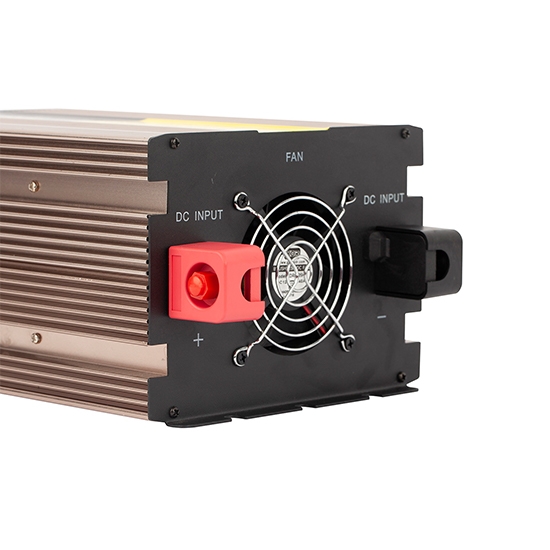

- The 3000w inverter 12V adopts an intelligent temperature control fan, which is controlled by temperature, when the working temperature of the inverter reaches 45°, the fan will start to work. The higher the temperature, the faster the fan speed.
- Intelligent chip, multiple protection, over-temperature, over-voltage, overload protection.
- 3000 watt inverter has excellent capacitance, high frequency, low resistance, and long life.
- Pure copper inductor, better efficiency, more stable voltage and current.
- Widely compatible with a variety of electrical appliances.
Details
Conductive Material

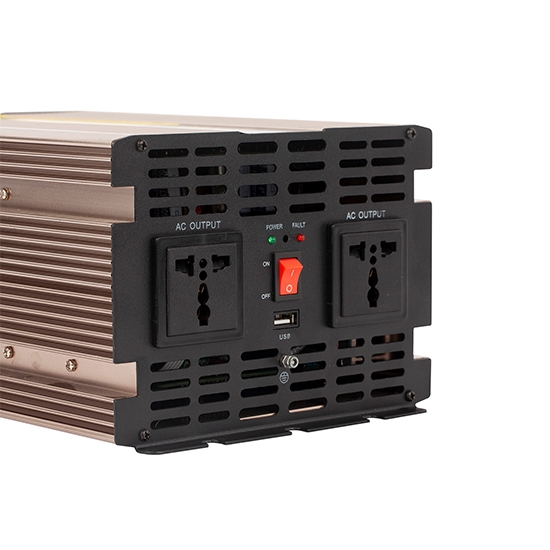

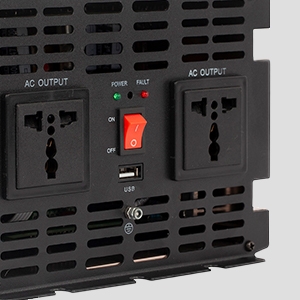

Universal switch and USB charging interface are all in one. Adopt good conductive material, and the conversion rate is over 90%. The power inverter's output is more stable, and the impact of the ability is excellent, up to the effect of frequency machines.

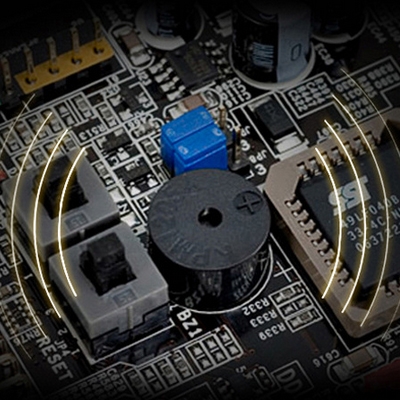

Beeping Alert Device
A beeping reminder device is installed to ensure the safety of the power inverter. When the batteries are low or insufficient, the 3000-watt inverter will emit a ticking alarm to protect the inverter from damage due to insufficient voltage.

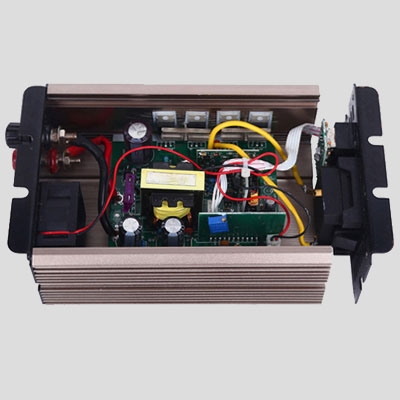

High-Performance Line Version
Using the SMT and SMD process, the volume of the electronic inverter reduced size, and weight reduction by 60% - 80% high reliability. The 12v inverter has strong vibration resistance, a low rate of defects in the welded joints, and high-frequency performance.
Applications:
Electronics

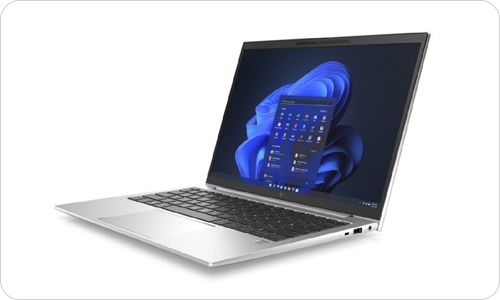

Laptop
Camera

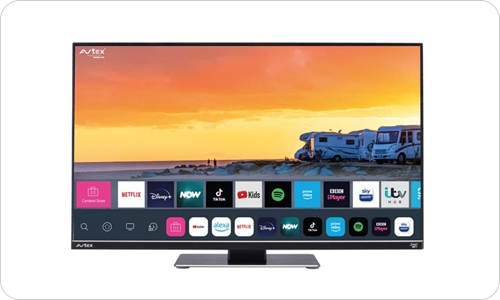

Television
| Model | HZTOHZ-MSWI-12V-3000W |
| Input Voltage | DC 12V |
| Output Voltage* | 1-Phase (L, N, G) 110V/120V AC ±5% or 220V/230V/240V AC ±5% - NOT provide split phase configuration (L1, L2+N, G) |
| Unload Current (less than) | 0.8A |
| Continuous Power | 3000W |
| Peak Power | 6000W |
| Output Frequency | 50Hz±0.5Hz or 60Hz±0.5Hz |
| Output Waveform* | Modified sine wave or Pure sine wave |
| Max. Efficiency | 90% |
| USB Port | 5V 1A |
| Outlet Type* | Universal outlet *2 (US socket *4) |
| Input Voltage Range | 10V-15.5V |
| Low Voltage Alarm | 10.5V±0.5V |
| Low Voltage Protection | 10V±0.5V |
| High Voltage Protection | 15.5V±0.5V |
| Low Voltage Recover | 12.3V±0.5V |
| Over Voltage Recover | 14.8V±0.5V |
| Overload Protection | Yes |
| Overheat Protection | Yes |
| Short Circuit Protection | Yes |
| Reverse Connection Protection | Yes |
| Cooling Method | Intelligent cooling fan |
| Working Temperature | -10℃ ~ +50℃ |
| Storage Temperature | -30℃ ~ +70℃ |

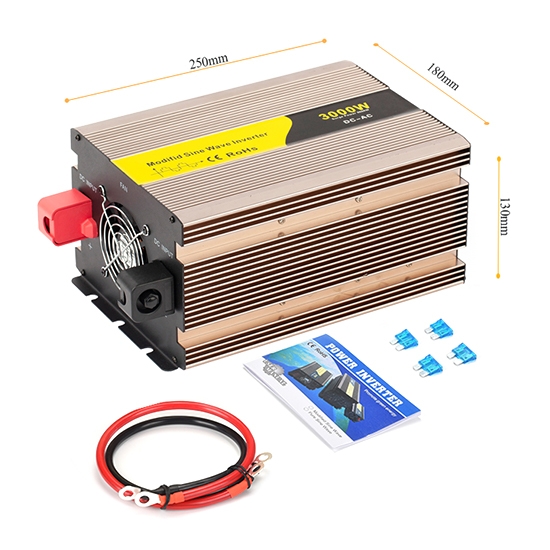

| Product Size | 250x180x130mm |
| Net. Weight | 4700g |
| Warranty | 2 years |
| Remote Control * | Wired control (3m) or Wireless control (20m) -Wired control ONLY applies to pure sine wave inverter |
Note: * The AC output is 1-Phase (L, N, G), NOT Split Phase like USA standard (L1, L2+N, G).

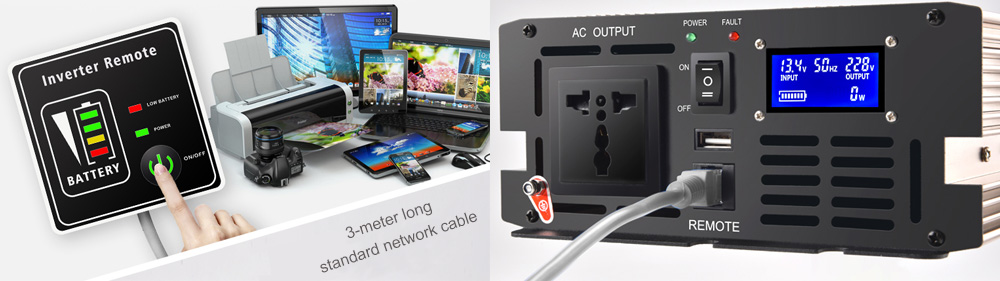

Pure Sine Wave Inverter Remote Control LCD Display (Optional)
- Pure sine wave power inverter is available with remote control: wired control and wireless control.
- LCD shows input voltage, output voltage, output frequency, battery capacity, and power.

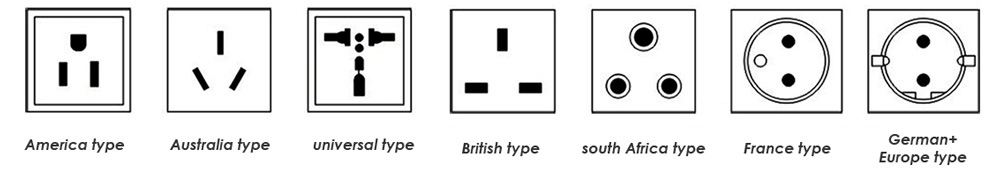

Output Sockets (Optional)

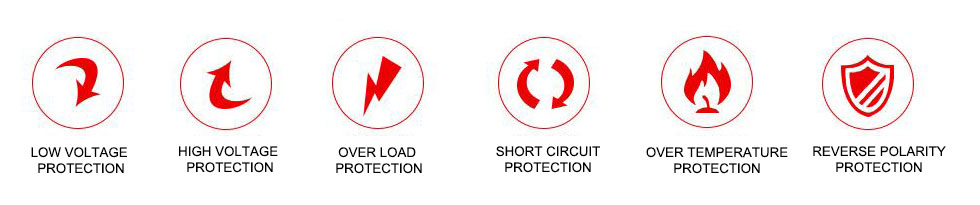

Protection Function
- Low voltage: Alarm at first; voltage continuously reduces, LED Red light on & shut down.
- Over voltage: LED Red light on, shut down.
- Over load: LED Red light on, shut down.
- Over temperature: Alarm at first; temperature continuously rises, LED Red light on & shut down.
- Short circuit: LED Red light on.
- Input reverse polarity: Fuse burn-out.
